119159002101116
| Manufacturer | |
| Description | 基板間およびメザニンコネクタ 2 WAY STD WIRED PLUG Conn Wire to Board PL 2 POS 3mm ST Cable Mount T/R CONN PLUG 2POS CABLE MOUNT Board to Board & Mezzanine Connectors 2 WAY STD WIRED PLUG |
| Category |
商业参数
| 其他名称 | 478-5856-2 | 产品类别 | Board to Board & Mezzanine Connectors |
| 标准包装数量 | 700 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 125 V | 最大额定电流 | 5 A |
| 最小输入电压 | 125VAC | 最小供电电压 | 125VAC |
机械参数
| 深度 | 14.7 mm | 间距 | 0.118" (3.00mm) |
| 高度 | 3 mm | 包装方式 | Tape and Reel |
| 端接方式 | Solder Cup | 外壳颜色 | White |
| 安装类型 | Straight | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 排数 | 1 |
| 触头材料 | Beryllium Copper | 壳体材料 | Nylon |
| 总长度 | 8 mm | 端接样式 | SMD |
| 触点数 | 2 | 位数 | 2 |
产品信息
| 类型 | Wire to Board | 样式 | Board to Cable/Wire |
| 连接器性别 | PL | 系列 | 9159 |
| 产品子类型 | Plugs | ||
环境参数
| 工作温度 | -40C to 125C | ||
Documents & Media
相关型号
609159340201000
avx / elco
Connector Accessories Plug Wired Latch Nylon 46 White Bag LATCH FOR 2,4,6 POS 9159 PLUG Board to Board & Mezzanine Connectors LATCH FOR PLUG USED ON 2,4,6 WAY LATCH, PLUG, 2, 4, 6WAY

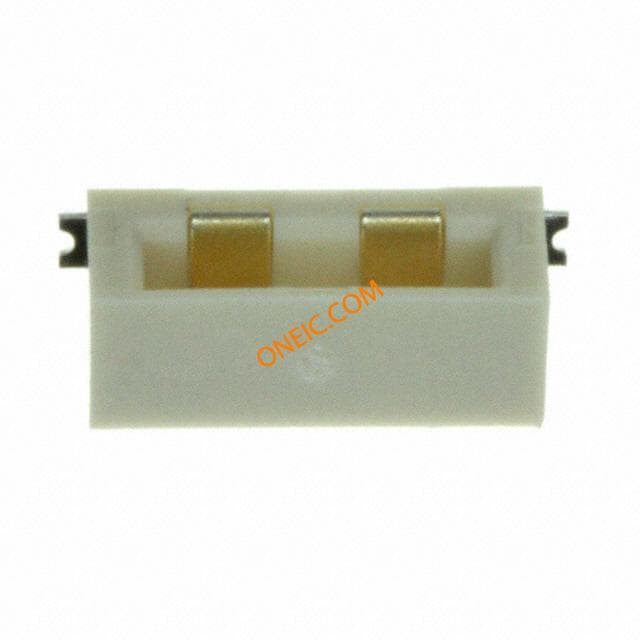

209159002101116
avx / elco
Conn Board to Board SKT 2 POS 3mm Solder RA SMD T/R CONN BOARD TO BOARD 2 POS RECEP CONNECTOR, SOCKET, 2WAY Connector: PCB to PCB; female; PIN:2; 3mm; Series:9159; -40÷125°C

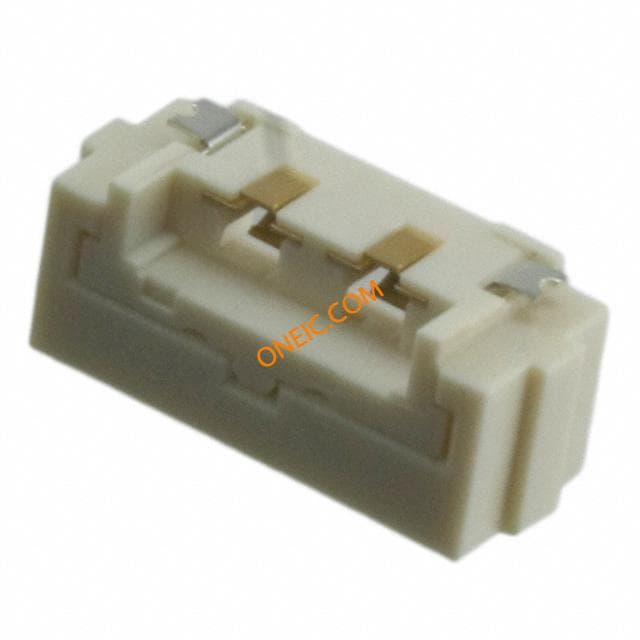

229159002101116
AVX Connectors
Board to Board & Mezzanine Connectors 2 WAY STANDARD TOP LOADING SOCKET Conn Board to Board SKT 2 POS 3mm Solder RA SMD T/R CONN RCPT 2POS TOP LOAD SMT

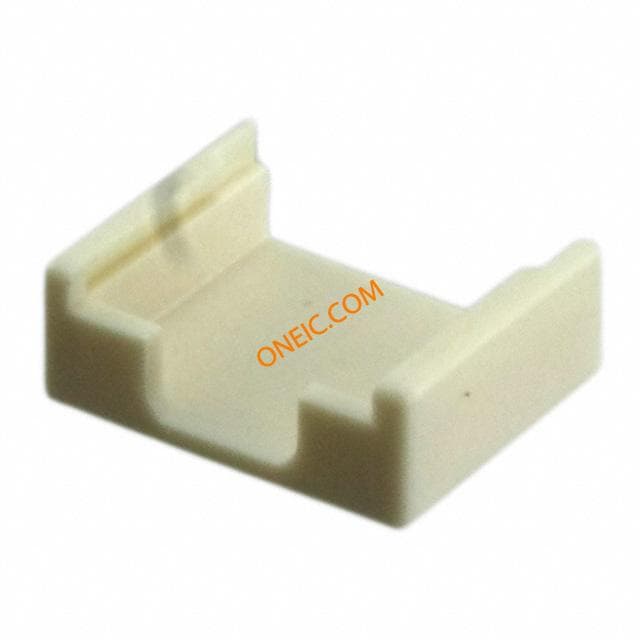

609159330201000
