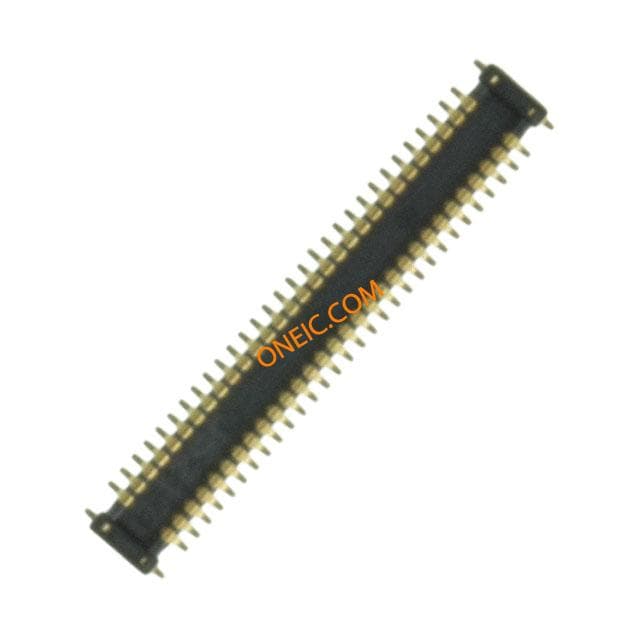

点击放大查看
245802060002829+
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 478-4947-2 | Product Category | Board to Board & Mezzanine Connectors |
| Standard Package | 2,000 | Factory Pack Quantity | 2000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 0.3 A | Voltage - Input (Min) | 50VDC|50VAC |
| Voltage - Supply (Min) | 50VDC/50VAC | ||
Mechanical
| Depth | 2.7 mm | Pitch | 0.016" (0.40mm) |
| Height | 0.75 mm | Packaging | Tape and Reel |
| Termination | Solder | Mounting Type | Surface Mount |
| Connector Type | Receptacle, Center Strip Contacts | Contact Finish | Gold |
| Mounting Style | Surface Mount | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Plastic |
| Length - Overall | 6.6 mm | Height Above Board | 0.030" (0.75mm) |
| Number of Contacts | 60 | Number of Positions | 60 |
| Mated Stacking Heights | 0.8mm | Contact Finish Thickness | 3.9µin (0.10µm) |
Product Info
| Type | Board to Board | Gender | RCP |
| Series | 5802 | Features | Board Guide, Solder Retention |
Environmental
| Operating Temperature | -40C to 85C | ||
Documents & Media
Similar Parts
Sourcing & traceability
- Datasheet
- 5802 Series
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
