点击放大查看
109159002101116
| Manufacturer | |
| Description | Conn Board to Board PL 2 POS 3mm Solder RA SMD T/R CONN BOARD TO BOARD 2 POS PLUG CONNECTOR, PLUG, 2WAY Connector: PCB to PCB; male; PIN:2; 3mm; Series:9159; -40÷125°C; 5A |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 478-5673-2 | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94VO | ||
电气参数
| 额定电压 | :125V | 最大额定电流 | :5A |
| 最小输入电压 | 125VAC | 连接器类型 - 电压输入 | LED Light |
机械参数
| 深度 | 5.2 | 间距 | 0.118" (3.00mm) |
| 高度 | 3 | 重量 | 0.01 |
| 包装方式 | Tape and Reel | 端接方式 | Solder |
| 柱间距 | 3mm | 外壳颜色 | White |
| 安装类型 | Surface Mount | 连接器类型 | male |
| 接触镀层 | Gold Over Nickel | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon 46 |
| 总长度 | 8.95 | 包装数量 | 1 |
| 触点数 | 2 | 接触件端接 | :Solder |
| 位数 | 2 | ||
产品信息
| SPG | 1 | 类型 | Board to Board |
| 样式 | Board to Board | 连接器性别 | PL |
| 系列 | :10-9159 | 产品特性 | Solder Retention |
| 适配器系列 | 9159 | 单元数量 | 1 |
环境参数
| 工作温度 | :125°C | ||
Documents & Media
PDF Document
相关型号
209159002101116
avx / elco
Conn Board to Board SKT 2 POS 3mm Solder RA SMD T/R CONN BOARD TO BOARD 2 POS RECEP CONNECTOR, SOCKET, 2WAY Connector: PCB to PCB; female; PIN:2; 3mm; Series:9159; -40÷125°C
¥3.4775
详情

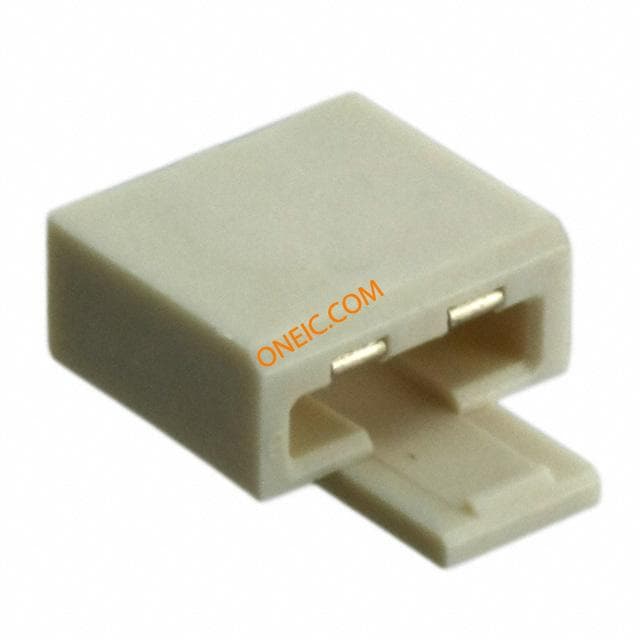

589159002000006
