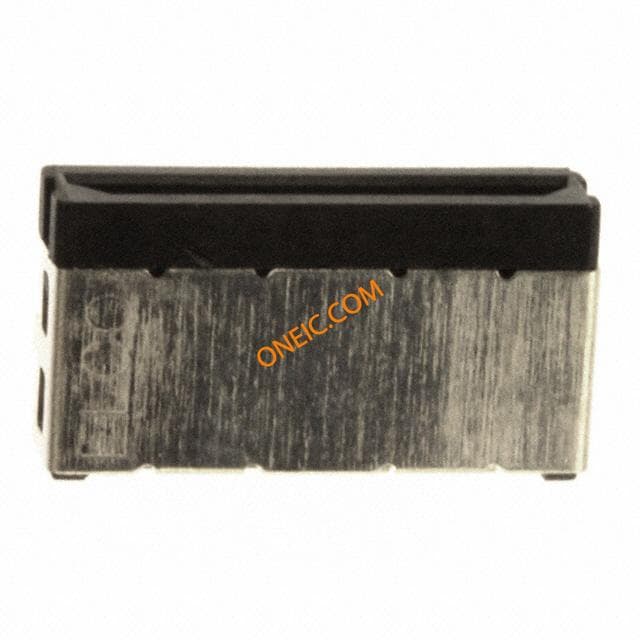

109257016001003
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Plug Connectors | Product Category | I/O Connectors |
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Black | Depth | 30.08 |
| Pitch | 1.25 mm | Packaging | Tube |
| Wire Type | Discrete | Termination | Solder Bucket |
| Contact Type | Non-Gender Specific | Mounting Type | Cable Mount |
| Connector Type | Plug | Contact Finish | Gold |
| Mounting Style | Cable | Number of Rows | 1 |
| Cable Termination | Solder Cup | Termination Style | Solder Bucket |
| Number of Contacts | 16 | Number of Positions | 16 |
| Contact Finish Thickness | 31.5µin (0.80µm) | ||
Product Info
| Type | Cellular Phone Connector | Gender | PL |
| Series | 9257 | Features | Dual Sided |
| Number of Ports | 1 | RF Family/Standard | 9257 |
| Number of Positions Loaded | 16 | ||
Documents & Media
PDF Document
Similar Parts
Sourcing & traceability
- Datasheet
- 9257 Reduced Size I/O Connector
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
