点击放大查看
119159004101116
| Manufacturer | |
| Description | Conn Wire to Board PL 4 POS 3mm ST Cable Mount T/R CONN PLUG 4POS CABLE MOUNT Board to Board & Mezzanine Connectors 4 WAY STD WIRED PLUG CONNECTOR, PLUG, 4WAY |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 478-5858-2 | 产品类别 | Board to Board & Mezzanine Connectors |
| 标准包装数量 | Tape & Reel | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 125 V | 最大额定电流 | 5 A |
| 最小输入电压 | 125VAC | ||
机械参数
| 深度 | 14.7 | 间距 | 0.118" (3.00mm) |
| 高度 | 3 | 重量 | 0.01 |
| 包装方式 | Tape and Reel | 端接方式 | Solder Cup |
| 外壳颜色 | White | 安装类型 | Straight |
| 接触镀层 | Gold Over Nickel | 排数 | 1 |
| 触头材料 | Beryllium Copper | 壳体材料 | Nylon |
| 总长度 | 14 | 端接样式 | SMD |
| 触点数 | 4 | 接触件端接 | :Solder |
| 位数 | 4 | ||
产品信息
| 类型 | Wire to Board | 样式 | Board to Cable/Wire |
| 连接器性别 | PL | 系列 | 9159 |
| 产品子类型 | Plugs | ||
Documents & Media
PDF Document
PDF Document
PDF Document
相关型号
609159330401000
avx / elco
Connector Accessories 4POS Plug Wired Cover Nylon 46 White Bag COVER FOR 4POS 9159 PLUG Board to Board & Mezzanine Connectors 4 WAY COVER FOR PLUG COVER, PLUG, 4WAY
¥0.8840
详情
609159340201000
avx / elco
Connector Accessories Plug Wired Latch Nylon 46 White Bag LATCH FOR 2,4,6 POS 9159 PLUG Board to Board & Mezzanine Connectors LATCH FOR PLUG USED ON 2,4,6 WAY LATCH, PLUG, 2, 4, 6WAY
¥1.2485
详情

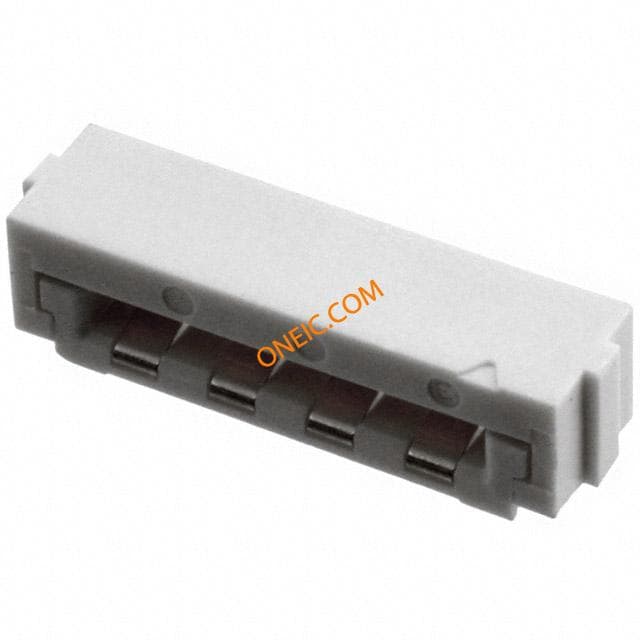

229159004101116
AVX Connectors
Board to Board & Mezzanine Connectors 4 WAY STANDARD TOP LOADING SOCKET Conn Board to Board SKT 4 POS 3mm Solder RA SMD T/R CONN RCPT 4POS TOP LOAD SMT
¥6.1986
详情

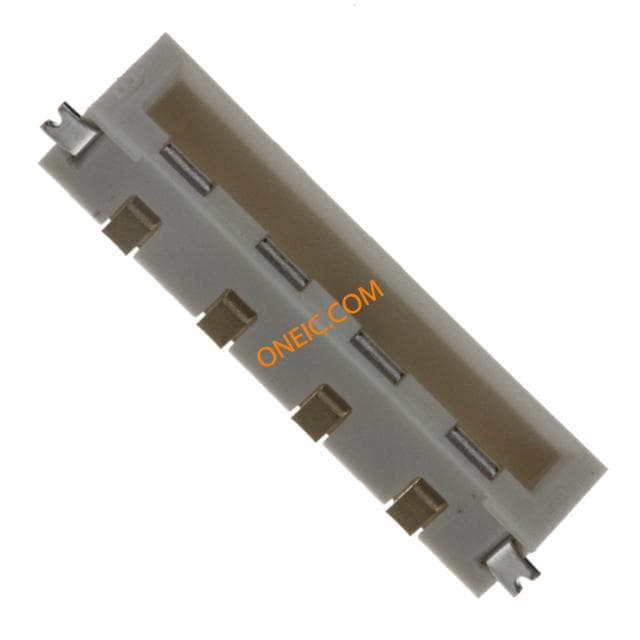

209159004101116
