109157015001006
| Manufacturer | |
| Description | Conn Cellular Phone Connector PL 15 POS 1mm Solder ST Cable Mount 15 Terminal 1 Port I/O Connectors 15P PLUG SLDR WIRE RF CONTACT CONN PLUG 15 POS CABLE MOUNT No. of Conta |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 478-4507 | Product Category | I/O Connectors |
| Standard Package | 580 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 00000000 | ||
Electrical
| Current Rating (Max) | 1.5 A | ||
Mechanical
| Color | Black | Pitch | 0.039" (1.00mm) |
| Height | 4.2 | Weight | 0.002 |
| Packaging | Bulk | Wire Type | Discrete |
| Termination | Solder | Contact Type | Center Strip Contact |
| Mounting Type | Straight | Connector Type | Plug |
| Mounting Style | Cable | Number of Rows | 2 |
| Length - Overall | 28.8 | Cable Termination | Solder Cup |
| Termination Style | Solder | Number of Contacts | 15 |
| Number of Positions | 16 (15 + 1 Coax) | ||
Product Info
| Type | Cellular Phone Connector | Gender | PL |
| Number of Ports | 1 | Number of Positions Loaded | 15 |
Documents & Media
PDF Document
PDF Document
Similar Parts
309157970000050
avx / elco
Connector Accessories I/O Connector Cover Kit Sub Assembly Screw/Press Fit Version COVER ASSMBLY FOR MOBO I/O Connectors SUB ASSMBLY STD CVR SCRW/PRESS FIT
$48.1848
Details
309157970100035
avx / elco
Connector Accessories I/O Connector Cover Kit Sub Assembly Ultrasonically Welded Version COVER ASSMBLY FOR MOBO
$9.1392
Details
309157970100050
avx / elco
Connector Accessories I/O Connector Cover Kit Sub Assembly Ultrasonically Welded Version I/O Connectors ASSMBLY FOR MOBO COVER ASSMBLY FOR MOBO
$12.9404
Details

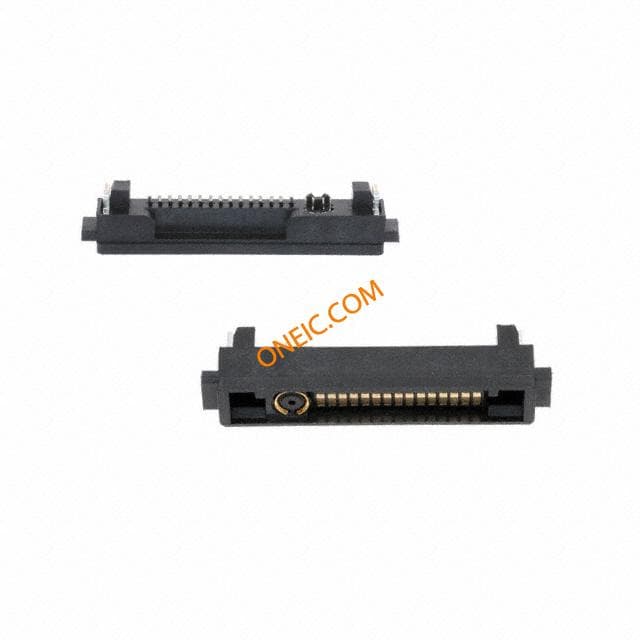

209157015001006
