点击放大查看

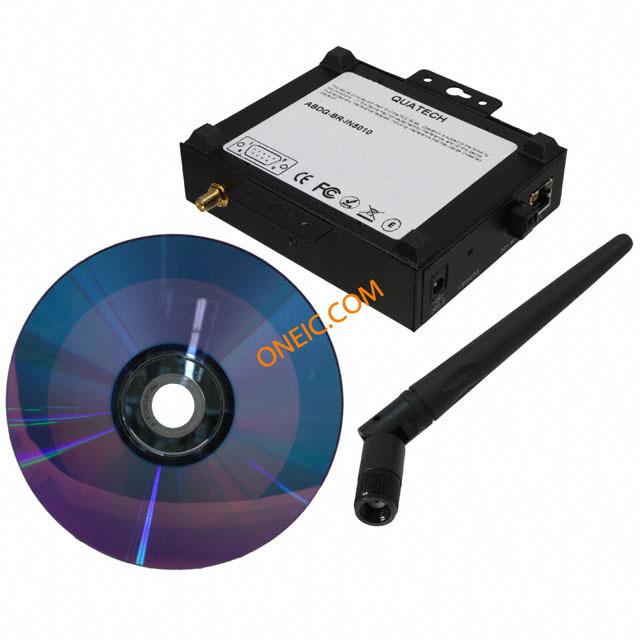

ABDG-BR-IN5010
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Security Features | WEP, WPA, WPA2 |
Electrical
| Data Rate | 11 Mbps, 54 Mbps | Frequency | 2.4GHz ~ 2.4835GHz |
| Interface | 2-Wire, Ethernet, RS-232, RS-422, RS-485 | Modulation | DSSS, OFDM |
| Sensitivity | -86dBm | Data Rate (Max) | 54Mbps |
| Current - Supply | 500 mA | Voltage - Supply | 5 V to 36 V |
| Current - Supply (Main IC) | 500 mA | Frequency Bands (Low / High) | 2.4 GHz |
Mechanical
| Size / Dimension | 120.14 mm x 120.12 mm x 29.21 mm | Antenna Connector | RPSMA |
Product Info
| Function | Transceiver, Bridge | Protocol | 802.11 b/g |
| Applications | WLAN | Modulation or Protocol | 802.11 b/g |
Environmental
| Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | Operating Temperature | + 85 C |
Documents & Media
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- 80211bg_ethernet_bridge_ind.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
