1692
| Manufacturer | |

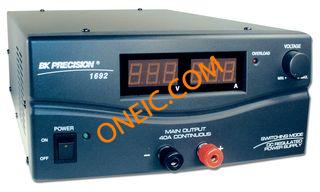

| Description | Bench Top Power Supplies 3-15VDC 40A DIGITAL POWER SUPPLY 3-15VDC 40A AC/DC Power Supply Single-OUT 3V to 15V/13.8V 40A POWER SUPPLY, BENCH, 15V/13.8V PowerSupply;DCTypeofPowerSupply;0to15VDC;40;DualColorDigitalLED |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | BK1692 | 零件号别名 | EXD |
| 产品类别 | Bench Top Power Supplies | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85044090 |
电气参数
| 纹波 | 10mV rms | 显示类型 | LED |
| 额定电压 | 120 VAC | 负载调整率 | 230mV |
| 输出电流 | 40A | 供电电压 | 120VAC |
| 输出数量 | 1 | 供电类型 | DC |
| 最小输入电压 | 3 ~ 15VDC | 电压线性调整率 | 80mV |
| 电压负载调整率 | 230mV | 输出电流/通道 | 40 A |
机械参数
| 重量 | 7.7 lbs (3.5kg) | 电缆类型 | North American Power Cord Included |
| 尺寸/外形 | 11.820" L x 4.330" W x 8.670" H (300.23mm x 109.98mm x 220.22mm) | ||
产品信息
| 类型 | Bench (AC to DC) | 产品特性 | Adjustable or Fixed Selection Switch |
| 仪表类型 | DualColorDigitalLED | 字符数 | 3 (2) |
