937-SP-3088R
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 5,000 | ||
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 150V | Contact Resistance | :10mohm |
| Dielectric Strength | :1000V | Current Rating (Max) | 1.5A |
| Insulation Resistance | :500Mohm | Connector - Voltage Input | :- |
Mechanical
| Color | Translucent - Clear | Depth | :7.9mm |
| Width | :11.7mm | Length | 0.885" (22.48mm) |
| Weight | 0.016 | Packaging | Bulk |
| Shielding | Unshielded | Cable Type | Round Cable, Stranded Wires |
| Wire Gauge | :26AWG | Termination | IDC |
| Connector Type | :RJ45 | Contact Finish | Gold |
| Plating - Body | :Gold | Contact Material | Phosphor Bronze |
| Housing Material | Polycarbonate (PC) | Color - Connectors | :Clear |
| Number of Contacts | :8 | Contact Termination | :Crimp |
| Number of Positions | :8 | Contact Finish Thickness | 50µin (1.27µm) |
| Material - Housing & Prism | :Polycarbonate | ||
Product Info
| Gender | :Plug | Series | :30 |
| Number of Ports | :1 | Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
Environmental
| Mating Cycles | :1000 | Operating Temperature | :125°C |
Documents & Media
Online Document
Sourcing & traceability
- Datasheet

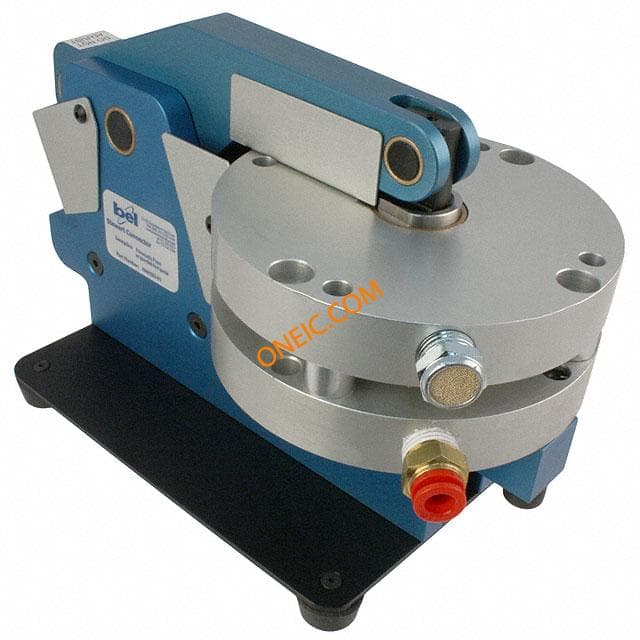

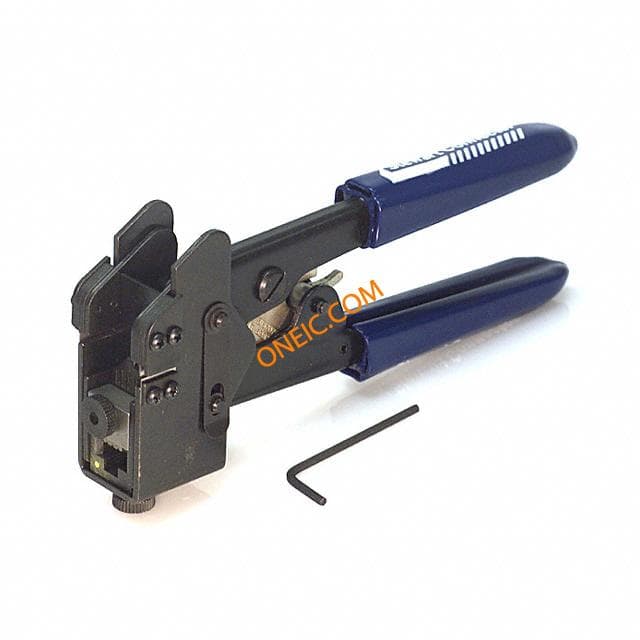

- Application Tooling
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
