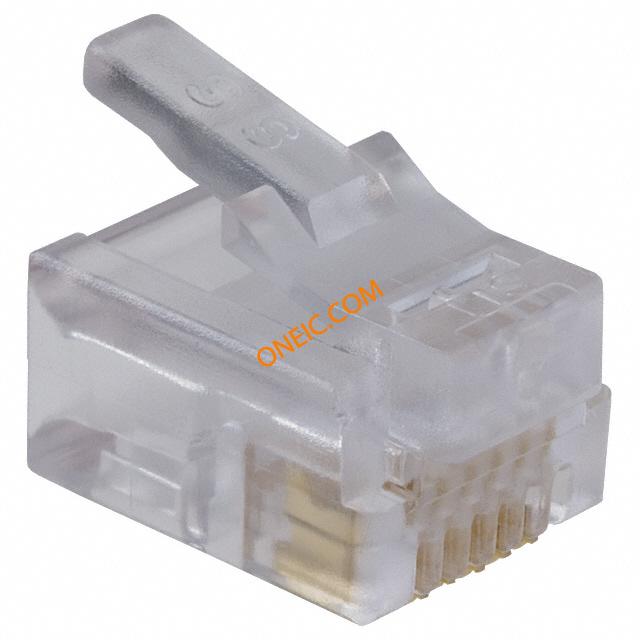

940-SP-3066
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 8,000 | ||
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Approval Agency | :CSA, UL |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 150V | Contact Resistance | :10mohm |
| Dielectric Strength | :1000V | Current Rating (Max) | 1.5A |
| Insulation Resistance | :500Mohm | ||
Mechanical
| Color | Translucent - Clear | Depth | :6.6mm |
| Width | :9.6mm | Height | :13.3mm |
| Length | 0.525" (13.34mm) | Weight | 0.01 |
| Packaging | Bulk | Shielding | Unshielded |
| Cable Type | Flat Oval Cable, Solid or Stranded Wires | Wire Gauge | :26AWG |
| Termination | IDC | Connector Type | :RJ11 |
| Contact Finish | Gold | Plating - Body | :Gold |
| Material Finish | :- | Contact Material | Phosphor Bronze |
| Housing Material | Polycarbonate (PC) | Color - Connectors | :Clear |
| Number of Contacts | :6 | Contact Termination | :Crimp |
| Number of Positions | :6 | Contact Finish Thickness | 50µin (1.27µm) |
| Material - Housing & Prism | :Polycarbonate | ||
Product Info
| Gender | :Plug | Series | :30 |
| Number of Ports | :1 | Number of Positions/Contacts | 6p6c (RJ11, RJ12, RJ14, RJ25) |
Environmental
| Mating Cycles | :1000 | Operating Temperature | :125°C |
Documents & Media
Online Document
Sourcing & traceability
- Datasheet
- Application Tooling
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
