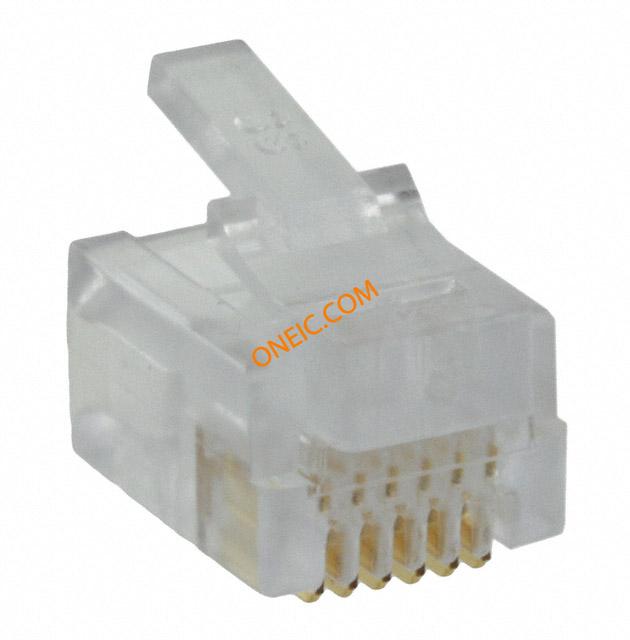

点击放大查看
940-SP-3066R
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 8,000 | ||
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85366910 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 150V | Contact Resistance | :10mohm |
| Dielectric Strength | :1000V | Current Rating (Max) | 1.5A |
| Insulation Resistance | :500Mohm | Connector - Voltage Input | :- |
Mechanical
| Color | Translucent - Clear | Depth | :6.6mm |
| Width | :9.6mm | Length | 0.525" (13.34mm) |
| Weight | 0.01 | Packaging | Bulk |
| Shielding | Unshielded | Cable Type | Round Cable, Solid or Stranded Wires |
| Wire Gauge | :26AWG | Termination | IDC |
| Connector Type | :RJ11 | Contact Finish | Gold |
| Plating - Body | :Gold | Material Finish | :- |
| Contact Material | Phosphor Bronze | Housing Material | Polycarbonate (PC) |
| Color - Connectors | :Clear | Number of Contacts | :6 |
| Contact Termination | :Crimp | Number of Positions | :6 |
| Contact Finish Thickness | 50µin (1.27µm) | Material - Housing & Prism | :Polycarbonate |
Product Info
| Gender | :Plug | Series | :30 |
| Number of Ports | :1 | Number of Positions/Contacts | 6p6c (RJ11, RJ12, RJ14, RJ25) |
Environmental
| Mating Cycles | :1000 | Operating Temperature | :125°C |
