SS-6444-NF
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 49 | ||
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | :30V | Voltage - Supply | :FCC docket 20780 |
| Contact Resistance | :10mohm | Dielectric Strength | :1000V |
| Current Rating (Max) | :1.5A | Insulation Resistance | :500Mohm |
| Connector - Voltage Input | :- | ||

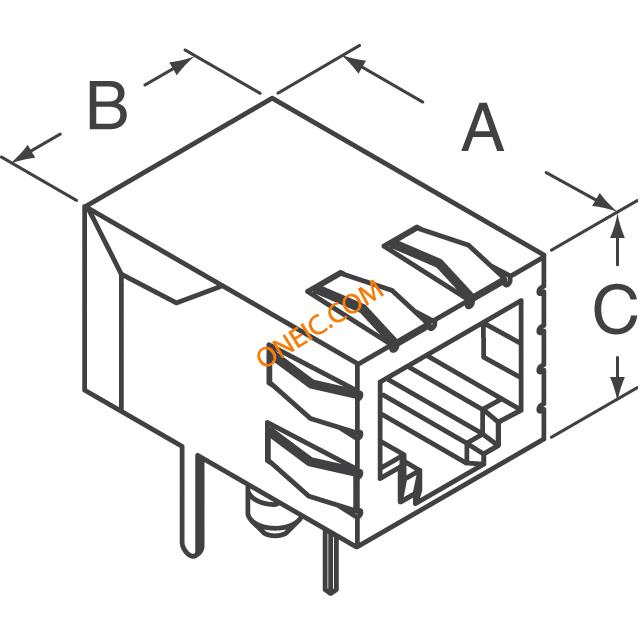

Mechanical
| Depth | :20.7mm | Width | :11.3mm |
| Height | :12.83mm | Length | :12.83mm |
| Weight | 0.004 | Material | :Polyester |
| LED Color | Does Not Contain LED | Packaging | Tray |
| Shielding | Unshielded | Orientation | 90° Angle (Right) |
| Termination | Solder | Mounting Type | Through Hole |
| Tab Direction | Down | Connector Type | Jack |
| Contact Finish | Gold | Number of Rows | 1 |
| Plating - Body | :Gold | Material Finish | :- |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Color - Connectors | :Black | Number of Contacts | :4 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | :4 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Gender | :Socket | Series | :- |
| Features | Board Lock | Number of Ports | 1 |
| Number of Positions/Contacts | 4p4c (RJ9, RJ10, RJ22) | ||
Environmental
| Mating Cycles | :1000 | ||
