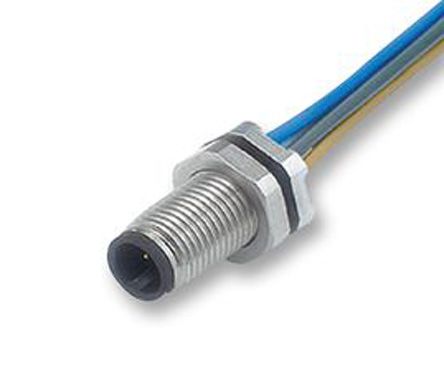

09-3105-86-03
| Manufacturer | |
| Description | Plug M5 inc wire 3 way panel 3x0.14mm2 LEAD, PANEL, 3WAY, 0.2M Panel-mount plug Poles 3, 09-3105-86-03, Binder Binder 707 系列 3路 面板安装 直向 连接器 插座 , 公触点, 螺钉固定接合 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (16-Dec-2013) | Tariff No | 85444290 |
Electrical
| Voltage Rating | 60 V | Number of Poles | :3 |
| Current Rating (Max) | 1A | Connector - Voltage Input | Miniature |
Mechanical
| Weight | 0.002 | Shell Size | 3.5mm |
| Cable Group | :Miniature Circular | Termination | Pre-Wired |
| Cable Length | :7.87" | Jacket Color | :- |
| Mounting Type | Straight | Connector Type | :M5 Panel Plug |
| Contact Finish | Gold | Connector Usage | Screw On |
| Contact Material | Brass | Housing Material | Metal |
| Length - Overall | :0.2m | 1st Contact Gender | Male |
| Number of Contacts | 3 | Wire Gauge or Range - mm2 | :0.14mm² |
| Jacket (Insulation) Material | :PU (Polyurethane) | ||
Product Info
| Gender | Female | Series | 707 |
| Number of Positions Loaded | :3 | ||
Environmental
| Seal Rating | IP67 | Operating Temperature | +80°C |
