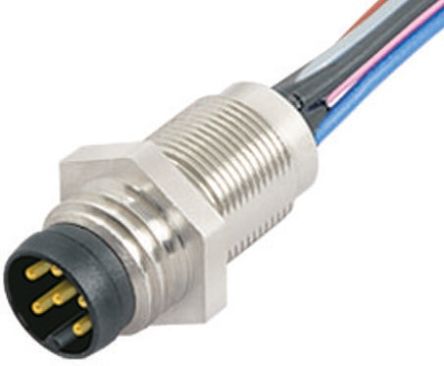

09-3463-00-06
| Manufacturer | |
| Description | Male socket with wires 6-way Panel-mount plug, 768 series 6-pole Poles 6, 09-3463-00-06, Binder Binder 200mm M8 公 电缆, 使用于M8 Sensor Connectors |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Voltage Rating | 30 | Number of Poles | 6 |
| Current Rating (Max) | 1.5 A | Voltage - Protection Level (VP) (2416) | IP 67 |
Mechanical
| Length | 200mm | Insertion Force | 公 |
| Locking Feature | M8 x 1 thread locking | Contact Material | CuSn(Zn)+Au |
| Housing Material | Polybutylene terephthalate (PBT) | Termination Style | Stranded Wires, Prepared |
| 1st Connector Gender | Male | ||
Product Info
| Series | 768 | Description | Panel-mount plugs with 0.2 m leads 0.25 mm² for front side mounting |
| Accessory Type | Socket | Connection Type | M8 |
| Connection Method | 0.25 mm² | For Use With/Related Products | M8 Sensor Connectors |
Environmental
| Operating Temperature | -40...+85 °C | ||
