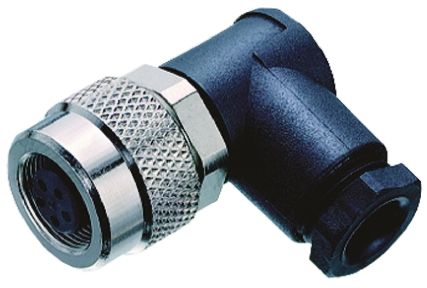

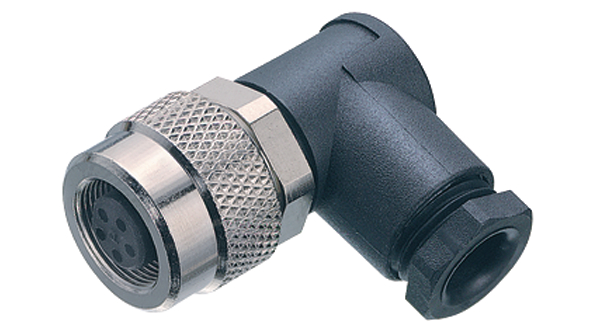

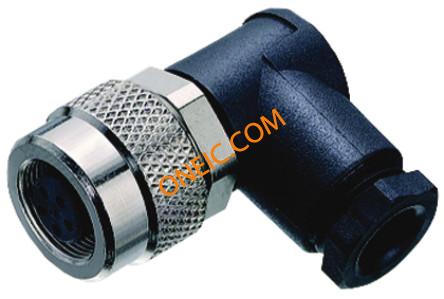

99-0422-70-07
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 125 V | Voltage - Breakdown | :1500V |
| Current Rating (Max) | 1A | Connector - Voltage Input | Subminiature |
Mechanical
| Weight | 0.012 | Shell Size | 14mm |
| Termination | Solder | Mounting Type | Right Angle |
| Connector Type | :Circular Industrial | Contact Finish | Gold |
| Connector Usage | Screw On | Insertion Angle | :- |
| Contact Material | Bronze | Housing Material | Polymer |
| 1st Contact Gender | Female | Number of Contacts | 7 |
| Contact Termination | :Solder | Shell Size - Insert | :M9 |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Gender | Male | Series | 712 |
Environmental
| Seal Rating | IP67 | Mating Cycles | :500 |
| NEMA Frame Size | :IP67 | Operating Temperature | +85°C |
