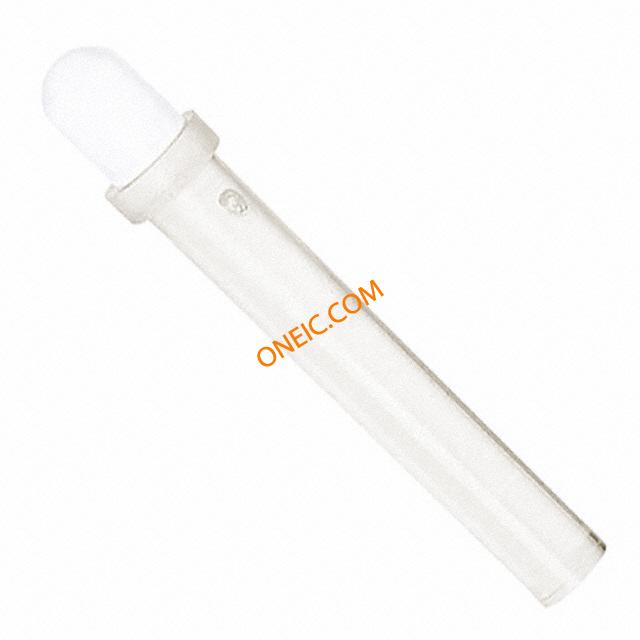

PLP1-750
| Manufacturer | |
| Description | LED Light Pipes Light Pipe Rear 3mm Round Lens LIGHT PIPE .750" ROUND PNL MNT 3mm Round Lens Light Pipe,19mm LIGHT PIPE, SINGLE, ROUND, PANEL Lightpipe for LED; round; Ø3mm; Front: convex; straight Bivar LED 导光管, 透明 圆顶透镜 |
| Category |
商业参数
| 产品 | Light Pipes | 产品类别 | LED Light Pipes |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85414010 |
电气参数
| 所用LED | parallel lighting | ||
机械参数
| 颜色 | Clear | 形状 | Cylindrical |
| 长度 | :19mm | 重量 | 0.000001 |
| 材料（通用） | Polycarbonate (PC) | 包装方式 | Bulk |
| 透镜颜色 | Clear | 安装类型 | Panel Mount, Press Fit, Rear |
| 安装样式 | Through Hole | 透镜样式/尺寸 | Round with Domed Top, 3mm |
| 前部连接器 | convex | 总长度 | 0.75 in |
| 包装数量 | 20 | 背景色 | :Transparent |
| 位数 | :1 | 光学边缘厚度 | :Circular |
产品信息
| SPG | 20 | 类型 | Rigid |
| 面板尺寸 | Ø3mm | 配置 | Single |
| 附件类型 | lightpipe for LED | 单元数量 | 1 |
| 其他规格 | straight | 适用产品/相关产品 | :SMD or Through Hole LEDs |
