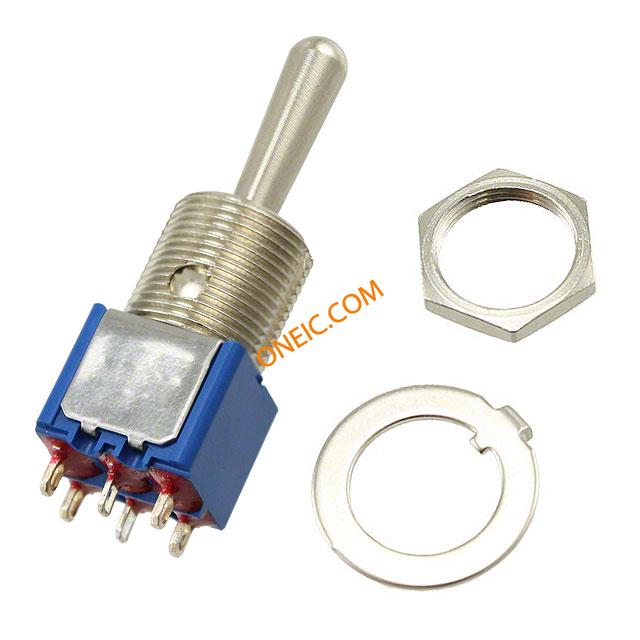

5646MAB
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 25 | ||
Electrical
| Circuit | DPDT | Voltage Rating | 125V |
| Switch Function | On-On | Voltage - Rated AC | 125V |
| Current Rating (Max) | 6A (AC), 4A (DC) | ||
Mechanical
| Packaging | Bulk | Light Color | Non-Illuminated |
| Actuator Type | Standard Round | Cable Opening | Circular - 12.50mm Dia |
| Mounting Type | Panel Mount | Bushing Thread | 15/32-32 |
| Actuator Length | 17.50mm | Actuator Material | Brass, Nickel Plated |
| Termination Style | Solder Lug | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Series | 5000 | Features | Epoxy Sealed Terminals |
| Circuit Type | DPDT | Illumination | Non-Illuminated |
| Electrical Life | 50,000 Cycles | Output Configuration | Panel Mount |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
