3006P-1-104LF
| Manufacturer | |
| Description | Res Cermet Trimmer 100K Ohm 10% 3/4W 15(Elec)Turn 2.36mm (20.57 X 4.83 X 6.35mm) Pin Thru-Hole Tube Res Cermet Trimmer 100K Ohm 10% 0.75W(3/4W) 15(Elec)Turn 2.36mm (20.57 X 4.83 X 6.35mm) Pin Thru-Hole Tube TRIMMER 100K OHM 0.75W PC PIN 3006P side adj cermet trimmer,100K 19mm Trimmer Resistors - Through Hole 100K 3/4 10% Sealed Multi Turn TRIMMER, 15 TURN 100K Trimmer;Cermet;Rest100Kilohms;PCB;Pwr-Rtg0.75W;Dim0.75InLx0.19InWx0.25InH Potentiometer: mounting; multiturn; 100kΩ; 750mW; ±10%; linear Trimmer Cermet 100 kOhm linear 750 mW, 3006P-1-104LF, Bourns |
| Category |
Business
| Product | Trimmers | Product Category | Trimmer Resistors - Through Hole |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85334010 |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Tolerance | 10 % | Resistance | 100 KOhm |
| Resolution | Infinite | Element Type | Cermet |
| Power (Watts) | 0.75W, 3/4W | Power - Rated | 3/4 W |
| Voltage Rating | :400V | Resistance (Ohms) | 100k |
| Contact Resistance | :1% | Dielectric Strength | 1000V |
| Voltage - Breakdown | :1000V | Resistance Tolerance | 100000Ω |
| Insulation Resistance | 500VDC@100megaohms(Min) | DC Resistance (DCR) (Max) | :100kohm |
Mechanical
| Depth | 4.83mm | Taper | Linear |
| Height | 6.35mm | Length | 20.57mm |
| Torque | 5Oz./in. | Weight | 0.00113 |
| Diameter | Not Required mm | Packaging | Tube |
| Termination | SolderablePins | Pin Diameter | :0.5mm |
| Mounting Type | Through Hole | Terminal Type | :PCB Terminals |
| Mounting Style | Through Hole | Rotation Angle | Wiperidles |
| Shaft Diameter | 2.36 mm | Length - Overall | 20.57 mm |
| Material - Blade | Cermet | Package Quantity | 25 |
| Size / Dimension | Rectangular - 0.750" L x 0.190" W x 0.250" H (19.05mm x 4.83mm x 6.35mm) | Pitch - Connector | 12.7x2.54mm |
| Termination Style | Pin | Conductor Material | cermet |
| Resistive Material | Cermet | ||
Product Info
| Spg | 25 | Type | Trimmer |
| Series | 3006P | Technology | Cermet |
| Failure Rate | Not Required | Product Type | Multi-Turn |
| Adjustment Type | Side Adjustment | Characteristics | linear |
| Electrical Life | 1000hr | Number of Turns | 15(Elec) Turns |
| Number of Units | 1 | Type Attributes | 19mm |
Environmental
| Switching Cycles | 200Cycles | Operating Temperature | -55 to 125 °C |
| Temperature Coefficient | ±100ppm/°C | Temperature Coefficient (Typ) | :100ppm/°C |
| Operating Temperature - Junction | +125°C | ||
Documents & Media
Similar Parts

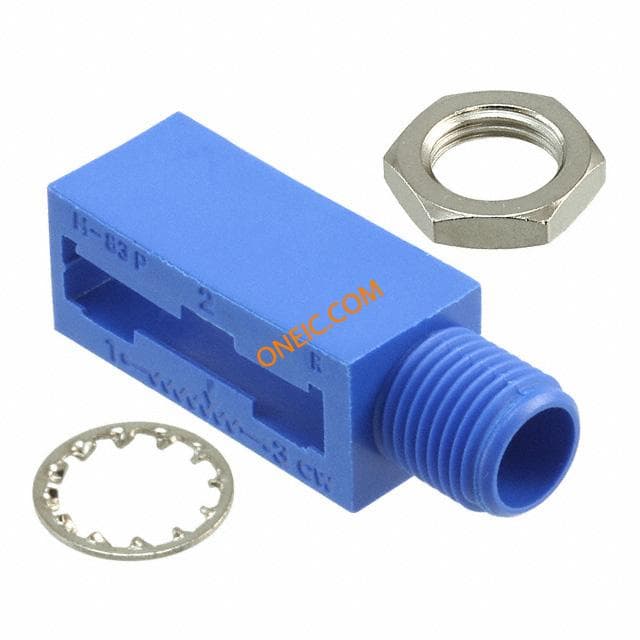

H-83P
