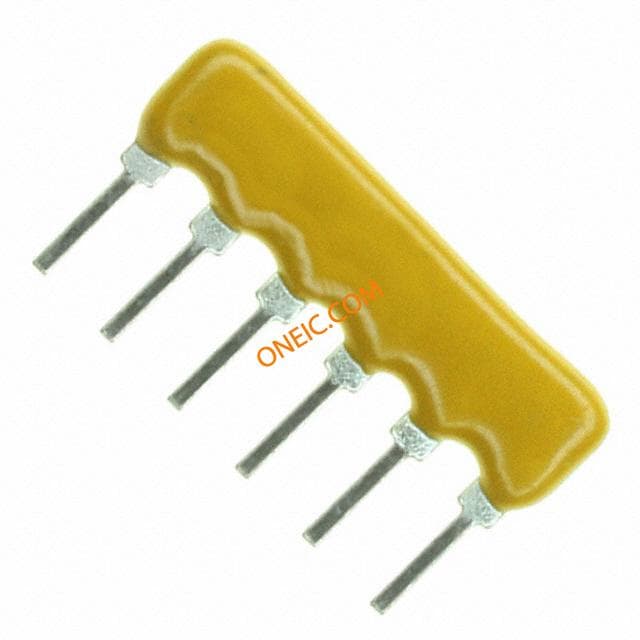

4306R-101-332LF
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Resistor Networks & Arrays | Standard Package | Bulk |
| Factory Pack Quantity | 35 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85332100 | ||
Electrical
| Circuit | BussedNetwork | Tolerance | 2% |
| Resistance | 3.3 KOhm | Power - Rated | 3/4 W |
| Voltage Rating | 100 V | Circuit Pattern | BUS |
| Resistor Values | 3.3 kOhms | Power Per Element | 200mW |
| Resistance (Ohms) | 3.3k | Number of Elements | :5 |
| Power - Peak Pulse | 0.2 (1/5) | Number of Resistors | 5 |
| Resistance Tolerance | :± 2% | ||
Mechanical
| Depth | 2.16 | Height | 0.195" (4.95mm) |
| Weight | 0.002 | Base Type | :SIP |
| Packaging | Bulk | Pitch - Post | 2.54 |
| Mounting Type | Through Hole | Number of Pins | 6 |
| Package / Case | Molded | Package Cooled | SIP |
| Material Finish | :- | Length - Overall | 14.83 |
| Size / Dimension | 0.584" L x 0.085" W (14.83mm x 2.16mm) | Termination Style | Pin |
| Number of Contacts | 6 | Number of Positions | 6 |
| Supplier Device Package | 6-SIP | ||
Product Info
| Type | Network | Series | 4300R |
| Technology | Thick Film | Circuit Type | Bussed |
| Manufacturer | 4300RSeries | Product Type | Networks |
Environmental
| Operating Temperature | -55 to 125 °C | Temperature Coefficient | ±100 ppm/°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
