PCW1D-R24-EAB503L
| Manufacturer | |
| Description | Res POT 50K Ohm 20% 3/4W 1(Elec)/1(Mech)Turn 6mm (31.42 X 23.37 X 23.72mm) Pin Panel Mount/Bracket Mount Res POT 50K Ohm 20% 0.75W(3/4W) 1(Elec)/1(Mech)Turn 6mm (31.42 X 23.37 X 23.72mm) Pin Panel Mount/Bracket Mount POT 50K OHM 22MM SQ 3/4W PLAS Potentiometers 50K 3/4 SHAFT |
| Category |
Business
| Product | Potentiometer | Other Names | PCW1DR24EAB503L |
| Product Category | Potentiometers | Standard Package | Bulk |
| Factory Pack Quantity | 45 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Tolerance | 20 % | Resistance | 50 KOhm |
| Element Type | Conductive Plastic | Power (Watts) | 0.75W, 3/4W |
| Power - Rated | 3/4 W | Resistance (Ohms) | 50k |
Mechanical
| Depth | 23.37 | Taper | Linear |
| Height | 23.72 | Rotation | 300° |
| Packaging | Tray | Size - Body | Square - 0.920" x 0.920" Face x 0.327" L (23.37mm x 23.37mm x 8.31mm) |
| Shaft Detail | Flatted / D | Actuator Type | Slotted Shaft |
| Mounting Type | Panel Mount/Bracket Mount | Mounting Style | Panel |
| Shaft Diameter | 6 mm | Actuator Length | 0.750" (19.05mm) |
| Length - Overall | 31.42 | Actuator Diameter | 0.236" (6.00mm) |
| Termination Style | Pin | Resistive Material | Conductive Plastic |
| Length - Shaft and Bearing | 24 mm | ||
Product Info
| Type | Potentiometer | Adjustment Type | Side Adjustment |
| Number of Turns | 1(Elec)|1(Mech) Turns | ||
Environmental
| Operating Temperature | 1 to 125 °C | Temperature Coefficient | ±1000ppm/°C |
Documents & Media
Similar Parts
OEJA-50-3-7
Kilo International
KNOB CLR/MATTE .50"DIA 6MM SHAFT
OEDL-50-3-7
Kilo International
KNOB CLR/MATTE .50"DIA 6MM SHAFT
OEJA-63-4-7
Kilo International
KNOB BLK/MATTE.625"DIA 6MM SHAFT
ML-50-4-6MM
Kilo International
KNOB BLK MATTE.50"DIA 6MM SHAFT

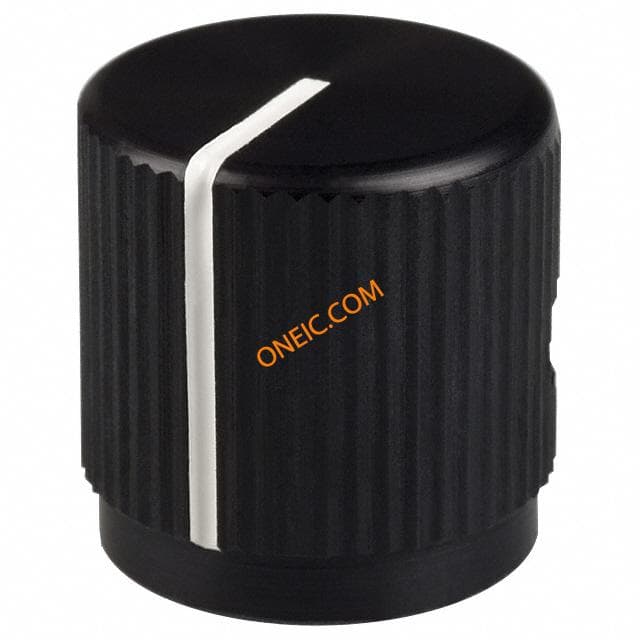

JD-63-4-6MM
Kilo International
KNOB BLK/MATTE.625"DIA 6MM SHAFT

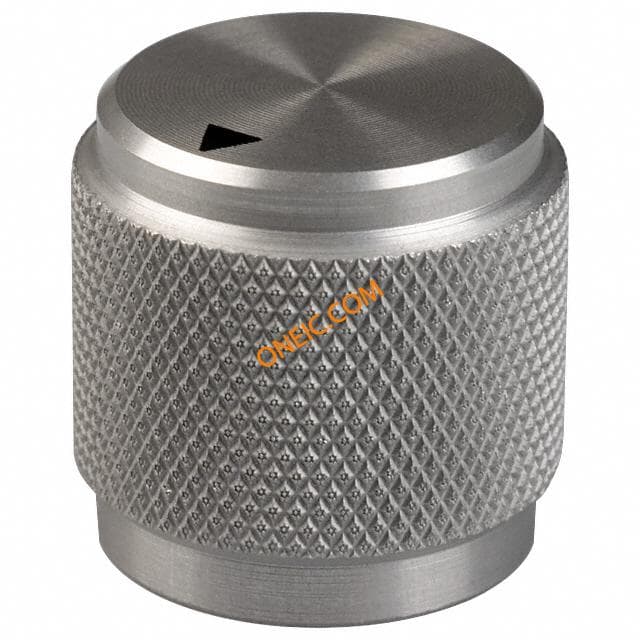

OEDA-63-3-7
Kilo International
KNOB CLR/MATTE.625"DIA 6MM SHAFT

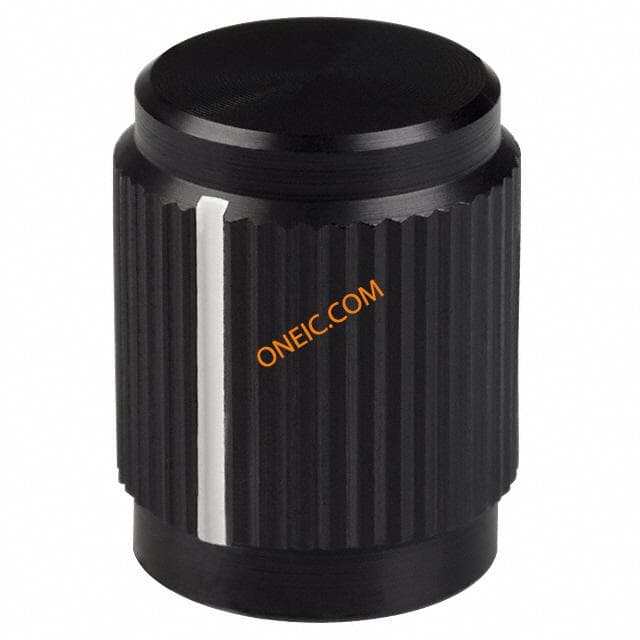

DD-50-2-6MM
Kilo International
KNOB BLK GLOSS.50"DIA 6MM SHAFT
SC-75-3-7
Kilo International
KNOB CLR/MATTE .75"DIA 6MM SHAFT
SC-90-2-7
Kilo International
KNOB BLK GLOSS.925"DIA 6MM SHAFT
DD-63-1-6MM
Kilo International
KNOB CLR GLOSS.625"DIA 6MM SHAFT

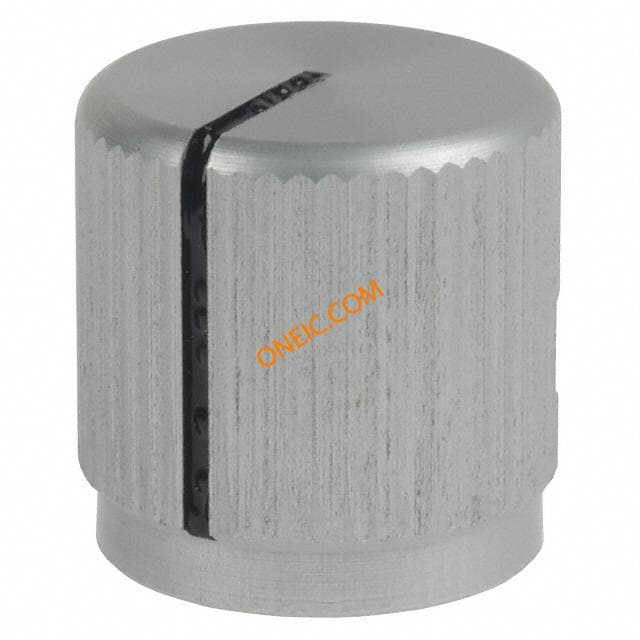

JD-63-3-6MM
Kilo International
KNOB CLR/MATTE.625"DIA 6MM SHAFT

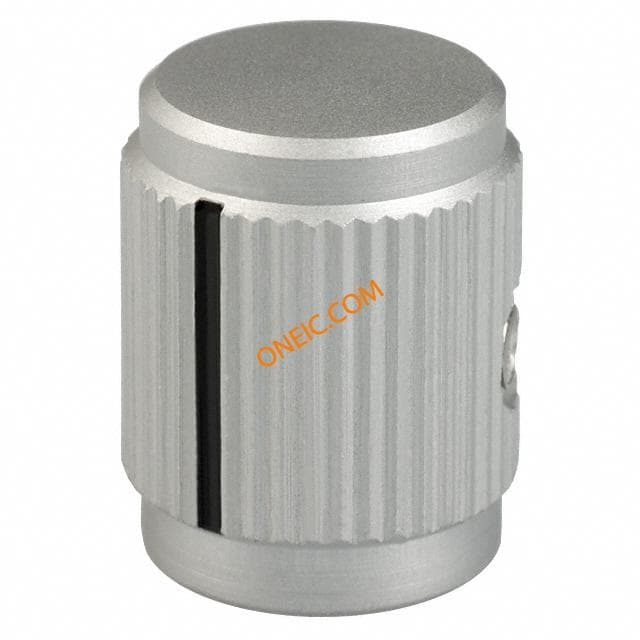

DD-50-1-6MM
Kilo International
KNOB CLR GLOSS.50"DIA 6MM SHAFT
DD-90-3-6MM
Kilo International
KNOB CLR MATTE.925"DIA 6MM SHAFT

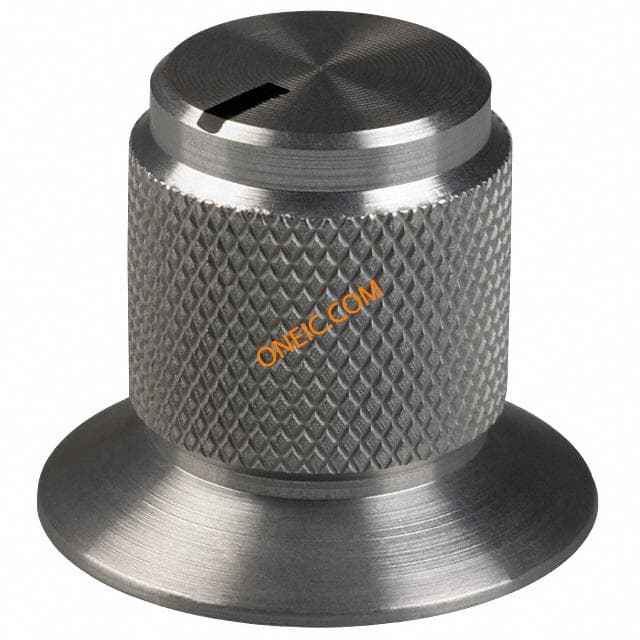

OESL-50-3-7
Kilo International
KNOB CLR/MATTE .50"DIA 6MM SHAFT

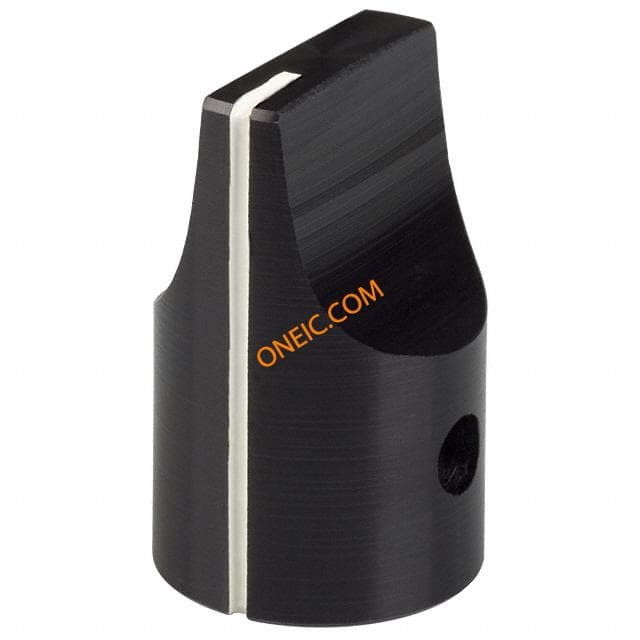

HD-63-4-6MM
Kilo International
KNOB BLK/MATTE.625"DIA 6MM SHAFT

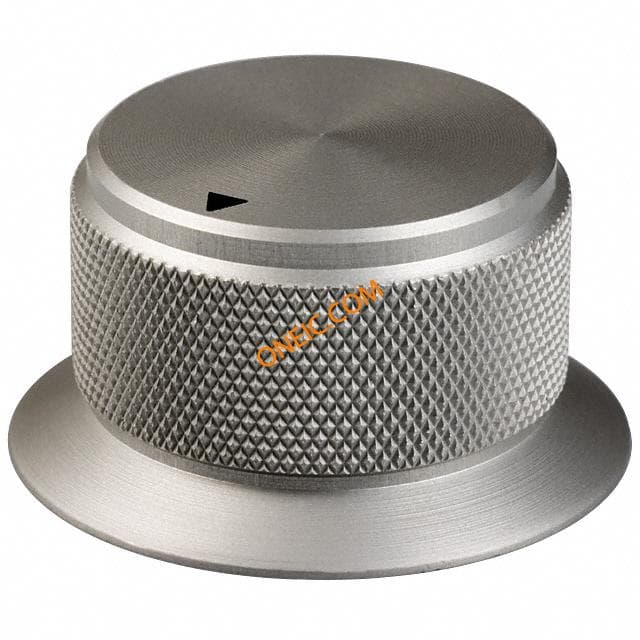

OESA-90-3-7
Kilo International
KNOB CLR/MATTE.925"DIA 6MM SHAFT

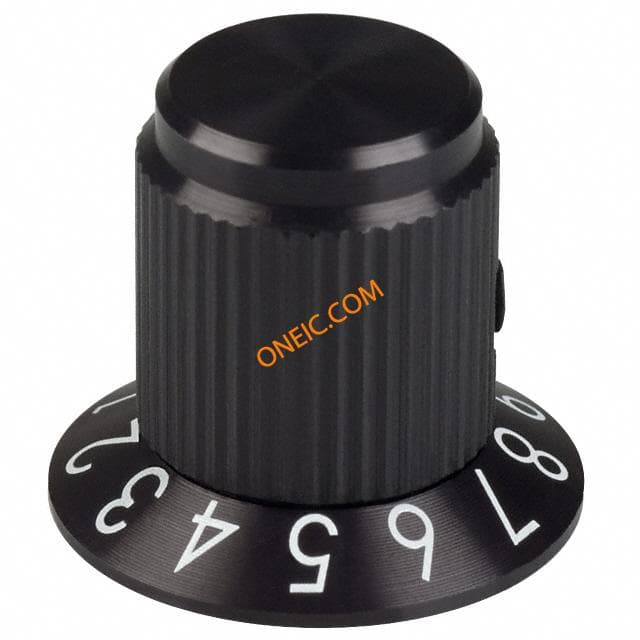

SC-50-4-7
