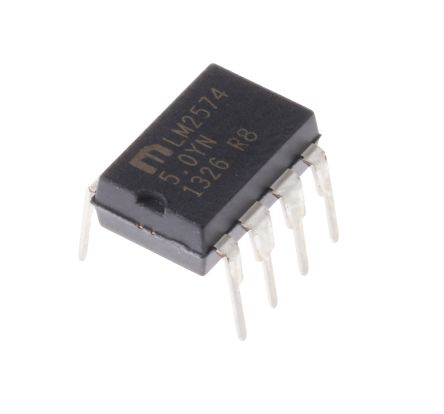

LM2574-5.0YN
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 50 | Standard Package Name | PDIP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Rad Hardened | No | ||
Electrical
| Efficiency | 78% | Output Type | Fixed |
| Converter Type | Step Down | Voltage Rating | 40 V |
| Current - Output | 500mA | Number of Outputs | 1 |
| Regulator Topology | Step Down | Switching Regulator | Yes |
| Frequency - Switching | 52kHz | Synchronous Rectifier | No |
| Voltage - Input (Min) | 5V | ||
Mechanical
| Width | 6.48mm | Height | 3.43mm |
| Length | 9.65mm | Weight | 0.000833 |
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :8 | Package / Case | 8-DIP (0.300", 7.62mm) |
| Package Cooled | PDIP | Material Finish | :- |
| Package Quantity | PDIP | Size / Dimension | 9.65 x 6.48 x 3.43mm |
| Number of Positions | 8 | Supplier Device Package | 8-PDIP |
Product Info
| Type | Step Down | Topology | Buck |
| Base Unit | :2574 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
