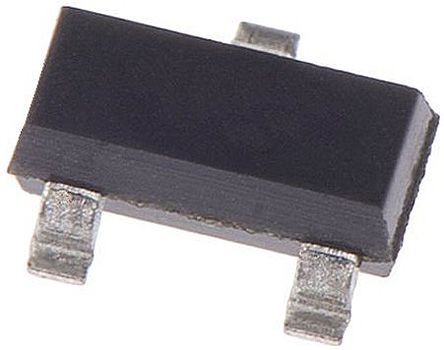

点击放大查看
LM4041CYM3-ADJ TR
| Manufacturer | |
| Description | V-Ref Adjustable 1.24V to 10V 12mA 3-Pin SOT-23 T/R IC VREF SHUNT PREC ADJ SOT-23-3 Voltage Reference Adjust. 1.24-10V SOT23 Voltage References Shunt Voltage Reference, Adjujstable 1.24V to 10V, 0.5% accuracy, 100ppm/deg - Lead Free V REF, 1.24-10V, 0.5%, 100PPM/C, 3SOT23 IC VREF SHUNT ADJ SOT23-3 Micrel 1.24 - 10V 电压参考, ±1%精确度, 12mA, 23针 SOT封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Voltage References | Other Names | 576-1049-1 |
| Standard Package | 3,000 | Standard Package Name | SOT-23 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
Electrical
| Tolerance | ±0.5% | Reference Type | Adjustable |
| Voltage Rating | 1.24 V to 10 V | Load Regulation | 4mV |
| Current - Output | 12mA | Current - Cathode | 60µA |
| Voltage Reference | :SOT-23 | Number of Channels | 1 |
| Voltage - Input (Min) | 1.24 V ~ 10 V | Voltage - Output (Max) | 10 V |
| Accuracy - Highest (Lowest) | 0.5% | Voltage - Output (Min/Fixed) | 1.24 V |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 1.4mm | Height | 1.05mm |
| Length | 3.05mm | Weight | 0.000002 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :3 | Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Package Cooled | SOT | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | SOT-23 | Size / Dimension | 3.05 x 1.4 x 1.05mm |
| Number of Positions | 3 | Supplier Device Package | SOT-23-3 |
Product Info
| Series | LM4040/4041 | Topology | Shunt |
Environmental
| Operating Temperature | -40°C ~ 85°C | Temperature Coefficient | 20ppm/°C(Typ) |
| Temperature Coefficient (Typ) | 100 PPM / C | ||
