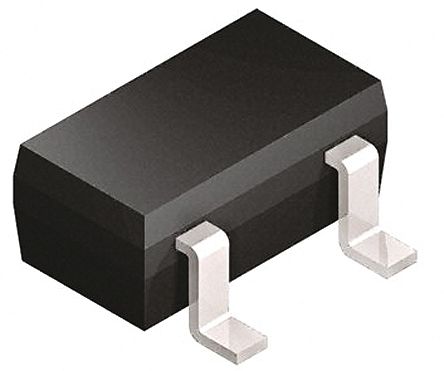

LM4041DYM3-ADJ TR
| Manufacturer | |
| Description | V-Ref Adjustable 1.24V to 10V 12mA 3-Pin SOT-23 T/R IC VREF SHUNT PREC ADJ SOT-23-3 Voltage References Shunt Voltage Reference, Adjustable 1.24V to 10V, 1.0% accuracy 150ppm/deg - Lead Free IC VREF SHUNT ADJ SOT23-3 Micrel 可调 1.24 - 10V 电压参考, ±1.0 %精确度, 3针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Voltage References | Other Names | 576-2573-1 |
| Standard Package | 3,000 | Standard Package Name | SOT-23 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Tolerance | ±1% | Reference Type | Adjustable |
| Voltage Rating | 1.24 V to 10 V | Load Regulation | 6mV |
| Current - Output | 12mA | Voltage - Supply | 1.24 V ~ 10 V |
| Current - Cathode | 65µA | Number of Channels | 1 |
| Current Rating (Max) | 12mA | Voltage - Input (Min) | 1.24 V ~ 10 V |
| Voltage - Output (Max) | 10 V | Accuracy - Highest (Lowest) | 1% |
| Voltage - Output (Min/Fixed) | 1.24 V | Current - Collector (Ic) (Max) | 65µA |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 1.3mm | Height | 0.9mm |
| Length | 2.92mm | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | Length - Overall | 2.92 |
| Package Quantity | SOT-23 | Size / Dimension | 2.92 x 1.3 x 0.9mm |
| Number of Positions | 3 | Shell Size - Insert | 1.01(Max) |
| Supplier Device Package | SOT-23-3 | ||
Product Info
| Series | LM4040/4041 | Topology | Shunt |
| Printed Circuit Board | 3 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | Temperature Coefficient | 20ppm/°C(Typ) |
| Temperature Coefficient (Typ) | 150 PPM / C | ||
