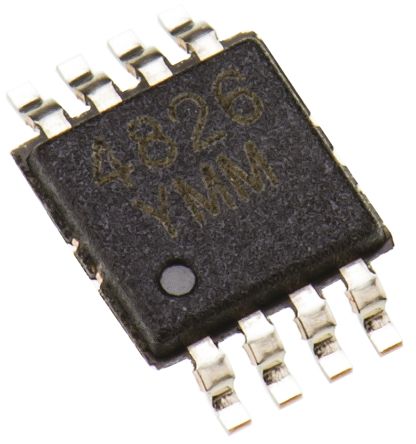

MIC4826YMM TR
| Manufacturer | |
| Description | EL Lamp DRVR 5.5V 8-Pin MSOP T/R IC DRIVER EL DC-AC 160VPP 8MSOP MIC4826YMM TR, Electroluminescent Panel Driver, 8-Pin MSOP LED Lighting Drivers 160V EL Driver (Lead Free) MIC4826 Series 5.5 V 75 uA Low Input 160 VPP Output Voltage EL Driver - MSOP-8 电致发光板驱动器, 8针 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 576-1226-1 | Standard Package | 2,500 |
| Standard Package Name | MSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Dimming | No | Frequency | 60Hz ~ 1kHz |
| Voltage Rating | 1.8 V, 2.5 V, 3.3 V, 5 V | Current - Output | 21µA |
| Current - Supply | 75 uA | Driver Circuitry | EL Lamp |
| Voltage - Supply | 1.8 V ~ 5.5 V | Voltage - Supply (Min) | 1.8 V |
Mechanical
| Width | 3mm | Height | 0.92mm |
| Length | 3mm | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Reel Capacity | 13" (330mm) | Cable Material | Plastic |
| Mounting Style | SMD/SMT | Number of Pins | 8 |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Package Cooled | MSOP |
| Package Quantity | MSOP | Size / Dimension | 3 x 3 x 0.92mm |
| Tape Width - Max | 12mm | Number of Positions | 8 |
| Supplier Device Package | 8-MSOP | ||
Product Info
| Type | EL Lamp Driver | Series | MIC4826 |
| Function | Y | Pattern Number | 576; MSOP-8LD-PD-1; MM; 8 |
Environmental
| Operating Temperature | -40°C ~ 85°C | Operating Temperature - Junction | 85C |
