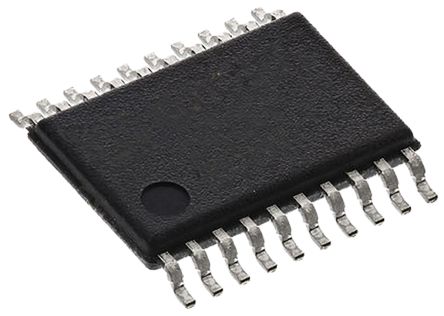

点击放大查看
SY100EP57VK4G
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Multiplexers | Standard Package | 74 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Circuit | 1 x 4:1 | Input Type | 差分 |
| Logic Type | ECL | Output Signal | 差分 |
| Power - Input | 单 | Voltage Rating | -3|3 |
| Number of Inputs | 4 | Voltage - Supply | ±3 V ~ 5.5 V |
| Number of Outputs | 1 | Number of Elements | 1 |
| Voltage Supply Source | Dual Supply | Voltage - Supply (Min) | -3/3 V |
| Delay Time - Propagation | 0.475 ns at 3 V to 5.5 V | Multiplexer/Demultiplexer Circuit | 4:1 |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 4.4mm | Height | 1.1mm |
| Length | 6.5mm | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 20 |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | Package Cooled | TSSOP |
| Length - Overall | 6.5 | Package Quantity | TSSOP |
| Size / Dimension | 6.5 x 4.4 x 1.1mm | Number of Positions | 20 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 20-TSSOP |
Product Info
| Type | Differential Digital Multiplexer | Series | SY100EP57V |
| Process | ECL | Function | Multiplexer |
| Polarity | Inverting/Non-Inverting | Switch Type | 多路复用器 |
| Circuit Type | 1 x 4:1 | Configuration | 1 x 4:1 |
| Channels per IC | 单 4:1 | Number of Lines | 4 / 1 |
| Independent Circuits | 1 | Output Configuration | Surface Mount |
| Printed Circuit Board | 20 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | Operating Temperature - Junction | 85C |
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- SY100EP57V
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
