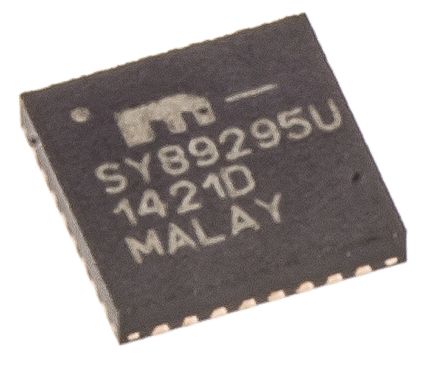

SY89295UMG
| Manufacturer | |
| Description | Active Programmable Delay Line 1-IN 0.01ns ABS 14.8ns MAX 32-Pin MLF IC DEL LINE 1024TAP 3.2NS 32MLF SY89295UMG, Delay Line 14.8ns, 32-Pin MLF Delay Lines / Timing Elements 2.5V/3.3V PECL Delay Line (I Temp, Green) ActiveProgrammableDelayLine0.01ns 延迟线 14.8ns, 32针 MLF封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 60 | Standard Package Name | MLF |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Tolerance | 14.8ns | Voltage Rating | 2.375 V |
| Frequency - Max | 3.2ns ~ 14.8ns | Current - Output | 220 mA |
| Delay to 1st Tap | 3.2ns | Voltage - Supply | 2.375 V ~ 3.6 V |
| Available Total Delays | 3.2ns ~ 14.8ns | Voltage - Supply (Min) | 3.6 V |
| Delay Time - Propagation | 3200 ps to 4200 ps | Current - Output High, Low | 40 uA |
| Number of Independent Delays | 1 | Max Propagation Delay @ V, Max CL | 14.8ns |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 5mm | Height | 0.84mm |
| Length | 5mm | Packaging | Tube |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 32 |
| Package / Case | 32-VFQFN Exposed Pad, 32-MLF® | Package Cooled | MLF |
| Length - Overall | 5 | Package Quantity | MLF |
| Size / Dimension | 5 x 5 x 0.84mm | Number of Positions | 32 |
| Shell Size - Insert | 0.84 | Supplier Device Package | 32-MLF® (5x5) |
| Absolute Pull Range (APR) | 0.01ns | ||
Product Info
| Series | SY89295U | Function | Programmable |
| Reset Timeout | 3.2ns | Tap Increment | 10ps |
| Number of Circuits | 1 | Number of Taps/Steps | 1024 |
| Printed Circuit Board | 32 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
