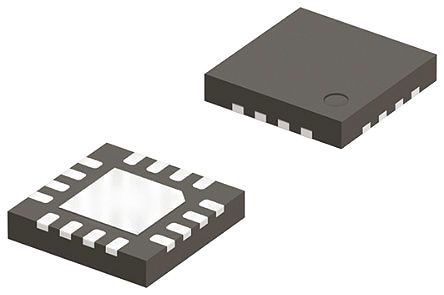

SY89876LMG
| Manufacturer | |
| Description | Clock Divider 1-IN LVDS 16-Pin MLF EP IC CLK BUFFER 1:2 2GHZ 16MLF Clock Drivers & Distribution 3.3V LVDS Output Clock Divider/Fanout (I Temp, Green) Micrel ECL 系列 1输入 时钟分频器, CMOS，TTL输出, 差分模式, 16针 MLF封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 100 | Standard Package Name | MLF |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Input | CML, HSTL, LVDS, LVPECL | Output | LVDS |
| Input Type | HSTL, LVCMOS, LVDS, LVPECL, LVTTL, SSTL | Logic Type | ECL |
| Output Type | LVDS | Input Signal | CML|HSTL|LVDS|LVPECL |
| Operating Mode | Differential | Voltage Rating | 3 |
| Frequency - Max | 2GHz | Current - Output | 75 mA |
| Number of Inputs | 1 | Voltage - Output | LVDS |
| Voltage - Supply | 2.97 V ~ 3.63 V | Frequency - Output 1 | 155.5 MHz |
| Ratio - Input:Output | 1:2 | Voltage - Supply (Min) | 3 V |
| Current - Quiescent (Iq) | 100000 uA | Current - Quiescent (Max) | 100 |
| Differential - Input:Output | Yes/Yes | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 3mm | Height | 0.8mm |
| Length | 3mm | Packaging | Tube |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 16 |
| Package / Case | 16-VFQFN Exposed Pad, 16-MLF® | Package Cooled | MLF |
| Package Quantity | MLF EP | Size / Dimension | 3 x 3 x 0.8mm |
| Number of Positions | 16 | Supplier Device Package | 16-MLF® (3x3) |
Product Info
| Type | Clock Divider | Series | SY89876L |
| Configuration | 1 x 2:1 | Number of Circuits | 1 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
