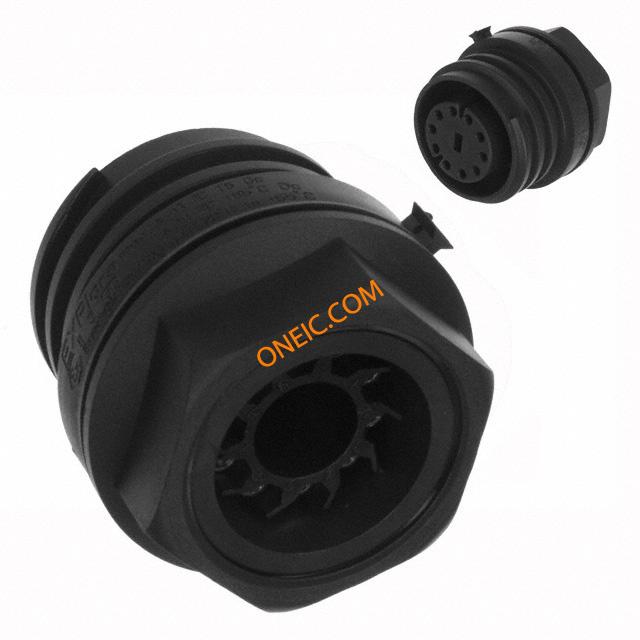

EXP-0931/10/S
| Manufacturer | |
| Description | Standard Circular Connector 10 P PANEL MNT SKT ATEX ZONE 2 & 22 CONN RCPT 10POS JAM NUT SKT Chassis connector, 10 pole socket CHASSISCONNECTOR,10WSKT Connector: circular; socket; female; PIN:10; EXPlora; IP68; UL94V-0 Bulgin EXP 系列 10路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
Compliance
| RoHS | Compliant | Standards | ATEX Ex |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage Rating | 250VAC/DC | Current Rating (Max) | 10A |
Mechanical
| Weight | 0.08 kg | Outline | 50mm |
| Packaging | Bulk | Shell Size | 50mm |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Screw | Contact Type | 母座 |

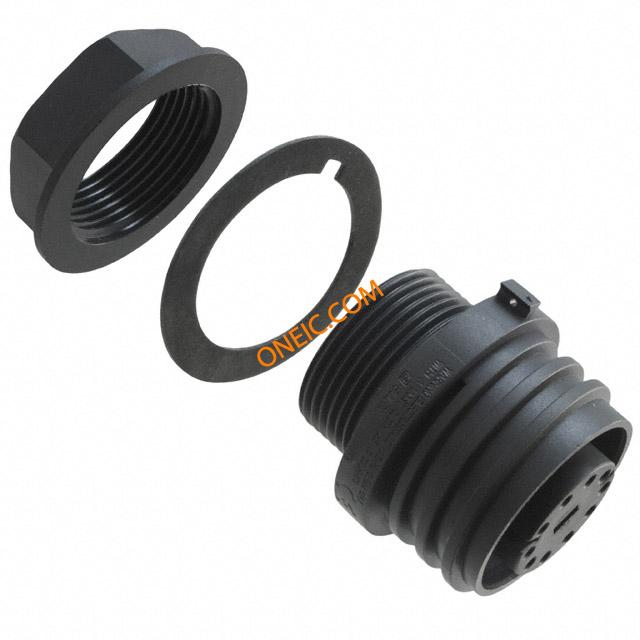

| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Nickel | Fastening Type | Threaded |
| Mounting Style | Panel | Shell Material | Plastic |
| Locking Feature | threaded joint, external thread | Contact Material | Brass |
| Housing Material | PET | Package Quantity | 10 |
| Termination Rows | 螺钉拧紧 | Connector - Cable | socket |
| Termination Style | Screw | 1st Contact Gender | Female |
| Mating Orientation | Threaded | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Material, Finish | Polyester |
| Wire Gauge or Range - mm2 | 0.75...2mm2 | Contact Material - Plating | nickel plated |
| Material - Housing & Prism | polyester | ||
Product Info
| Spg | 10 | Gender | Female |
| Series | EXP | Product Type | Connectors |
| Adapter Series | EXPlora | Number of Units | 1 |
Environmental
| Seal Rating | IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 55°C | ||
