PX0412/06P

Manufacturer	Bulgin
Description	Standard Circular Connector 6 POLE CHAS MT PLUG CONN HSNG RCPT JAM NUT 6POS PIN 6 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 6 POS ST Panel Mount 6 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 6 WAY, PANEL Connector;Plug;6;22to26AWG;CrimpandSolder;5A;125VAC/VDC;UL94V-0 Connector: circular; socket; male; PIN:6; w/o terminals; IP68; 125V appliance plug Buccaneer 400, 6-pole 6, PX0412/06P, Bulgin Bulgin Buccaneer 系列 6路面板安装直向连接器 , 公触点
Category	Connector SolutionsCircular ConnectorsIndustrial Circular Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Standard Circular Connector	Standard Package	25
Factory Pack Quantity	25

Compliance

RoHS	Compliant	Tariff No	85366990
Approval Agency	ULRecognized/CSA/VDE	Material Flammability Rating	:UL94V-0

Electrical

Voltage Rating	125 V ac/dc	Voltage - Working	:125V
Contact Resistance	:5mohm	Current Rating (Max)	5A
Connector - Voltage Input	w/o terminals

Mechanical

Weight	0.004	Material	:Nitrile
Packaging	Bulk	Wire Gauge	:22AWG
Orientation	Keyed	Shell Style	Plug
Size - Body	Ø22 x 19.9mm	Termination	Crimp/Solder
Contact Type	Crimp and Solder Cup	Body Material	polyamide
Mounting Type	Panel Mount, Bulkhead - Rear Side Nut	Angle of Throw	Straight
Connector Type	Receptacle for Male Contacts	Contact Finish	Gold
Fastening Type	Threaded	Mounting Style	Panel
Shell Material	Plastic	Insertion Angle	:-
Locking Feature	threaded joint, external thread	Material - Body	:Nylon (Polyamide)
Contact Material	Copper Alloy	Housing Material	Polyamide
Package Quantity	25	Primary Material	Sealed
Connector - Cable	socket	1st Contact Gender	Male
Mating Orientation	Threaded	Number of Contacts	6
Number of Positions	6	Shell Size - Insert	:-
Shell Material, Finish	Polyamide	Wire Gauge or Range - AWG	:26AWG
1st Connector Mounting Type	:Panel	Diameter - Outside, Non-Expanded	:7mm

Product Info

Spg	25	Note	Contacts Not Provided
Type	PanelPlug	Gender	:Plug
Series	Buccaneer	Manufacturer	400Series
Product Type	Connectors	Adapter Series	Buccaneer 400
Number of Units	1

Environmental

NEMA Frame Size	:IP68	Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature	+80°C

Documents & Media

PDF Document

400 Series Buccaneer

PDF Document

Buccaneer-2010_400_series.pdf

Similar Parts

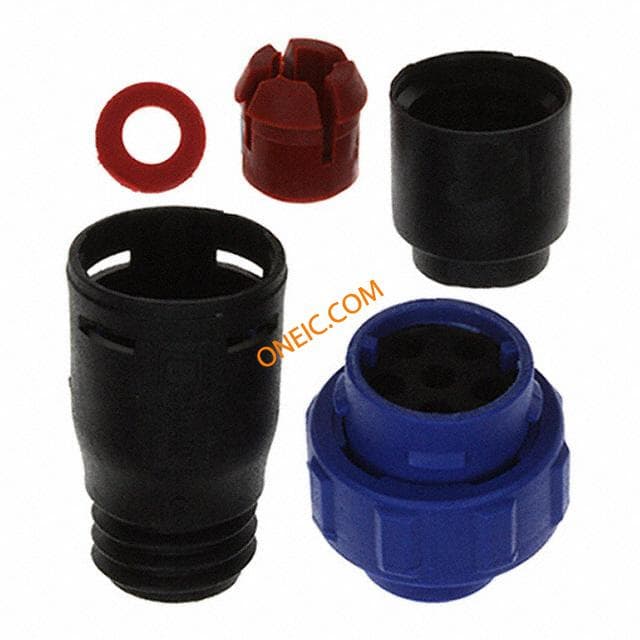

PX0410/06S/4550
