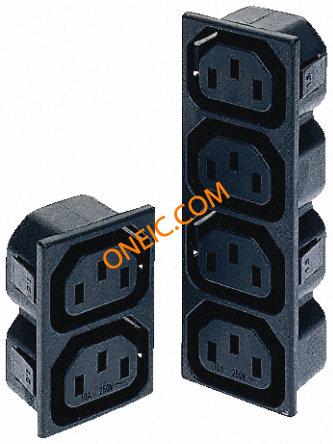

点击放大查看
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 电流 | 15A | 电压 | 250V |
| 额定电压 | 250 V ac | 最大额定电流 | 10A |
机械参数
| 深度 | :30.33mm | 宽度 | :35.05mm |
| 长度 | :51.05mm | 重量 | 0.028 |
| 交流输出口 | :2 | 端接方式 | Solder |
| 安装类型 | Panel Mount, Snap-In | 端子类型 | :2.8mm x 0.8mm |
| 连接器类型 | Receptacle, Female Sockets | 连接器样式 | IEC 320-C13 |
| 连接器 - 电缆 | 2 X C13 | 端接样式 | Solder Eyelet |
| 连接器颜色 | :Black | 面板后深度 | :30.33mm |
| 接触件端接 | :Solder | 位数 | 3 per connection (2) |
| 外壳与棱镜材料 | :Nylon | 第一连接器安装类型 | :Panel |
产品信息
| 连接器性别 | Female | 系列 | :- |
环境参数
| 工作温度 | :70°C | ||
