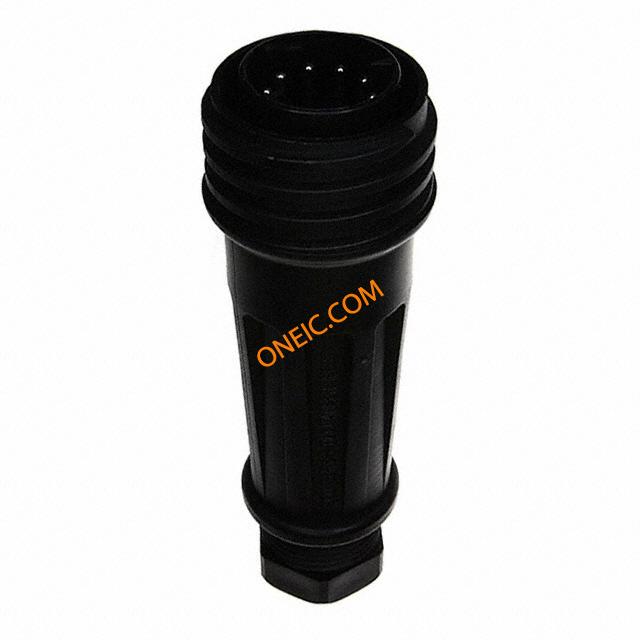

PX0921/10/P
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 708-1380 | Product Category | Standard Circular Connector |
| Standard Package | 10 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94V-0 |
Electrical
| Voltage Rating | 250VAC/DC | Current Rating (Max) | 10A |
Mechanical
| Weight | 0.13 kg | Packaging | Bulk |
| Wire Gauge | 18-14 | Orientation | Keyed |
| Shell Style | Plug | Termination | Screw |
| Mounting Type | Free Hanging (In-Line) | Cable Diameter | 13...15mm |
| Connector Type | Receptacle, Male Pins | Contact Finish | Nickel |
| Fastening Type | Threaded | Mounting Style | Wire |
| Shell Material | Plastic | Locking Feature | threaded joint, external thread |
| Contact Material | brass | Package Quantity | 10 |
| Connector - Cable | plug | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 10 | Number of Positions | 10 |
| Shell Material, Finish | Polyamide | Wire Gauge or Range - mm2 | 0.75...2mm2 |
| Contact Material - Plating | nickel plated | Material - Housing & Prism | polyamide |
Product Info
| Spg | 10 | Series | Buccaneer 900 |
| Product Type | Connectors | Adapter Series | Buccaneer 900 |
| Number of Units | 1 | Output Configuration | Free Hanging (In-Line) |
Environmental
| Ingress Protection | IP68 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 85°C |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- Buccaneer-2010_900_series-12857.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
