点击放大查看

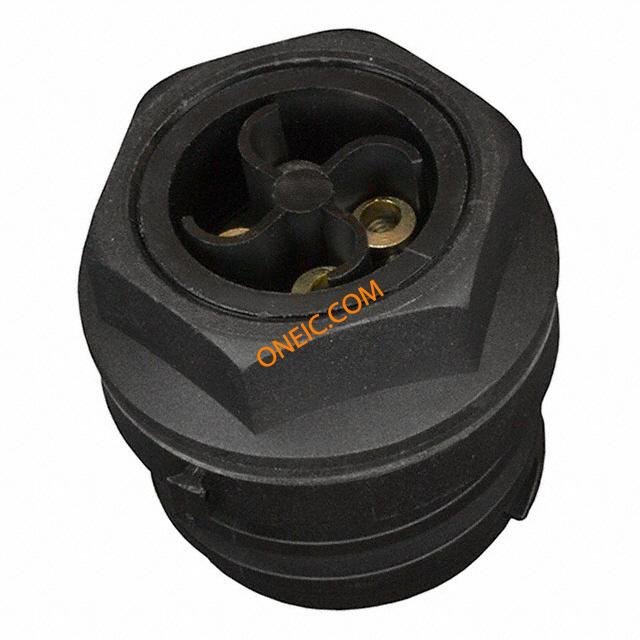

PX0931/04/P
| Manufacturer | |
| Description | Standard Circular Connector 4 POLE CHAS MT PLG CONN RCPT 4POS PNL MNT PIN 4 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PL 4 POS Screw ST Panel Mount 4 Terminal 1 Port PLUG, CHASSIS MOUNT, 4WAY Connector;Plug;4;13to10AWG;AxialScrewTerminal;32A;600VAC/VDC Connector: circular; socket; male; PIN:4; Buccaneer 900; IP68; 32A Bulgin Buccaneer 系列 4路 面板安装 直向 连接器 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | :UL 94V-0 |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage Rating | 600VAC/DC | Voltage - Working | :600V |
| Contact Resistance | :10mohm | Dielectric Strength | :2000V |
| Current Rating (Max) | 32A | Insulation Resistance | :5Mohm |
Mechanical
| Width | :50mm | Length | :49mm |
| Weight | 0.078 | Packaging | Bulk |
| Wire Gauge | :2.5mm² | Orientation | Keyed |
| Shell Style | Plug | Termination | Screw |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Connector Type | Receptacle, Male Pins | Contact Finish | Nickel |
| Fastening Type | Threaded | Mounting Style | Panel |
| Insertion Angle | :- | Locking Feature | threaded joint, external thread |
| Material - Body | :Nylon (Polyamide) | Contact Material | Brass |
| Package Quantity | 10 | Connector - Cable | socket |
| Termination Style | Axial Screw | 1st Contact Gender | Male |
| Number of Contacts | 4 | Contact Termination | :Screw |
| Number of Positions | 4 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide | Wire Gauge or Range - mm2 | :4mm² |
| Contact Material - Plating | nickel plated | Material - Housing & Prism | polyamide |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Spg | 10 | Gender | :Plug |
| Series | Buccaneer | Product Type | Connectors |
| Adapter Series | Buccaneer 900 | Number of Units | 1 |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
