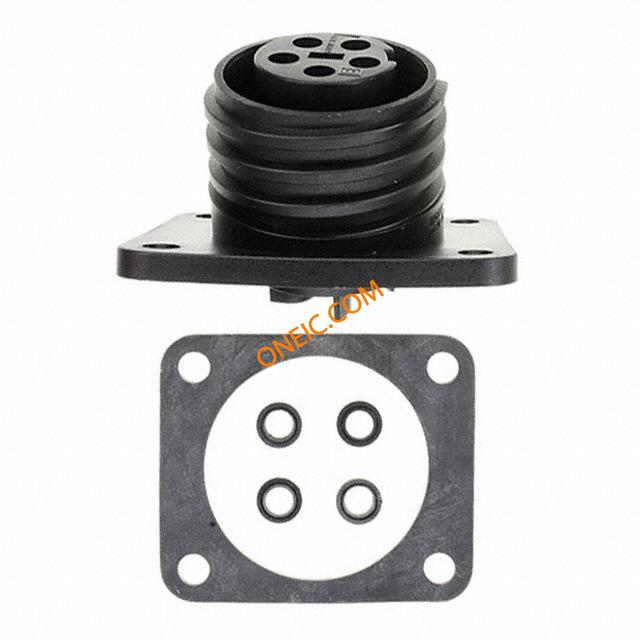

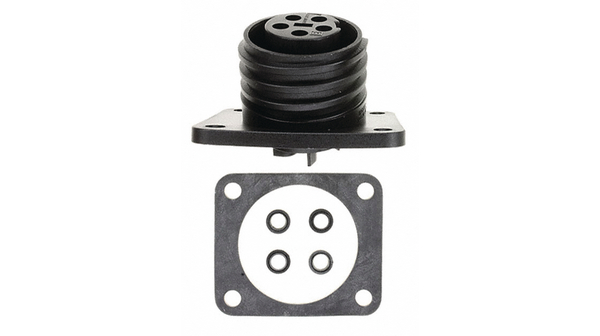

PX0941/05/S
| Manufacturer | |
| Description | Standard Circular Connector 5P PNL MOUNT SKT CONN RCPT 5POS PNL MNT SKT 5 Pole Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 5 POS Screw Panel Mount 5 Terminal 1 Port SOCKET, FLANGE, 5WAY Connector;Socket;5;ScrewTerminal;32A/25A(CSA);600VAC/VDC;-40degC Connector: circular; socket; female; PIN:5; Buccaneer 900; IP68 Appliance socket with flange, 5-pole 5, PX0941/05/S, Bulgin Bulgin Buccaneer 系列 5路 面板安装 连接器 , 母触点 |
| Category |
商业参数
| 其他名称 | 708-1222 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | :UL 94V-0 |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 600VAC/DC | 工作电压 | :600V |
| 接触电阻 | :10mohm | 介电强度 | :2000V |
| 最大额定电流 | 32A | 绝缘电阻 | :5Mohm |
机械参数
| 深度 | :60mm | 宽度 | :70mm |
| 长度 | :51mm | 重量 | 0.08 |
| 包装方式 | Bulk | 导线线规 | :2.5mm² |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Screw | 触头类型 | Socket |
| 安装类型 | Panel Mount, Flange | 行程角度 | Straight |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Nickel |
| 紧固类型 | Threaded | 安装样式 | Flange |
| 插入角度 | :- | 锁定特性 | threaded joint, external thread |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | Brass |
| 壳体材料 | Polyamide | 包装数量 | 10 |
| 主要材料 | Sealed | 连接器 - 电缆 | socket |
| 端接样式 | Axial Screw | 第一触头极性 | Female |
| 配接方向 | Threaded | 触点数 | 5 |
| 接触件端接 | :Screw | 位数 | 5 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 线规或范围 - mm² | :4mm² | 触点材料 - 镀层 | nickel plated |
| 外壳与棱镜材料 | polyamide | 第一连接器安装类型 | :Panel |
产品信息
| SPG | 10 | 类型 | PanelSocket |
| 连接器性别 | :Receptacle | 系列 | Buccaneer |
| 制造商全称 | 900Series | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer 900 | 单元数量 | 1 |
| 应用细节 | Commercial | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 85°C | ||
