RoHS	Compliant	Tariff No	85366990
Material Flammability Rating	UL94V-0

Voltage Rating	277VAC/DC	Voltage - Working	:277V
Current Rating (Max)	12A

Weight	0.0624	Packaging	Bulk
Shell Size	32mm	Orientation	Keyed
Termination	Screw	Mounting Type	Panel Mount, Bulkhead - Rear Side Nut
Connector Type	Receptacle, Male Pins	Contact Finish	Nickel
Fastening Type	Push-Twist	Mounting Style	for panel mounting, rear side nut
Connector Usage	Push-Pull	Insertion Angle	:-
Locking Feature	external bayonet, push-pull	Material - Body	:PBT (Polybutylene Terephthalate), PC (Polycarbonate)
Contact Material	Brass	Housing Material	PC/PBT
Package Quantity	25	Connector - Cable	socket
1st Contact Gender	Male	Number of Contacts	3
Contact Termination	:Screw	Number of Positions	3
Shell Size - Insert	:-	Maximum Cable Length	1.5mm2
Shell Material, Finish	Polycarbonate/Polybutylene Terephthalate (PBT)	Contact Material - Plating	nickel plated
Material - Housing & Prism	PBT, polycarbonate	1st Connector Mounting Type	:Panel

Seal Rating	IP66, IP68, IP69K	Ingress Protection	IP66/68/69K - Dust Tight, Water Resistant, Waterproof
Operating Temperature	-40°C ~ 120°C

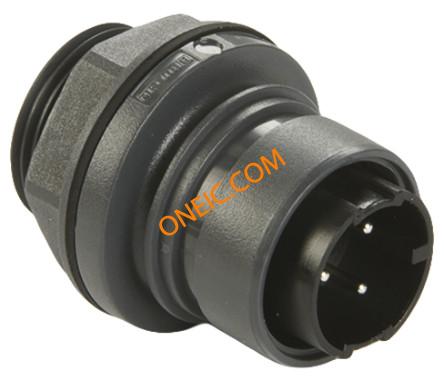

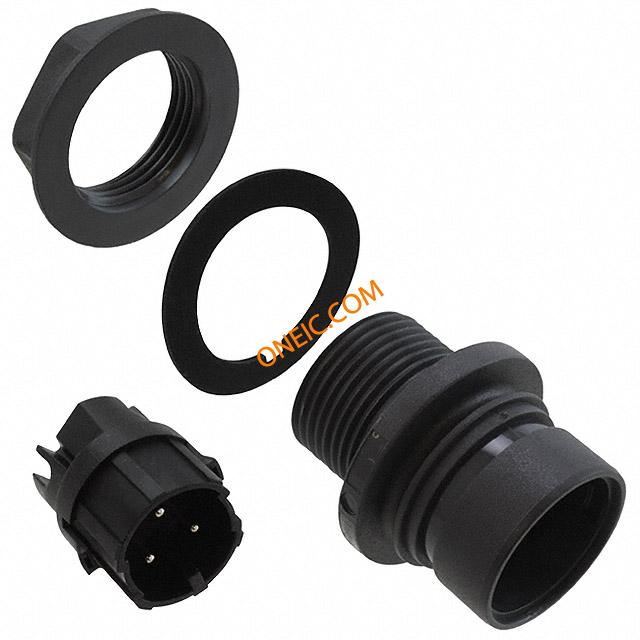

PXP6012/03P/ST
