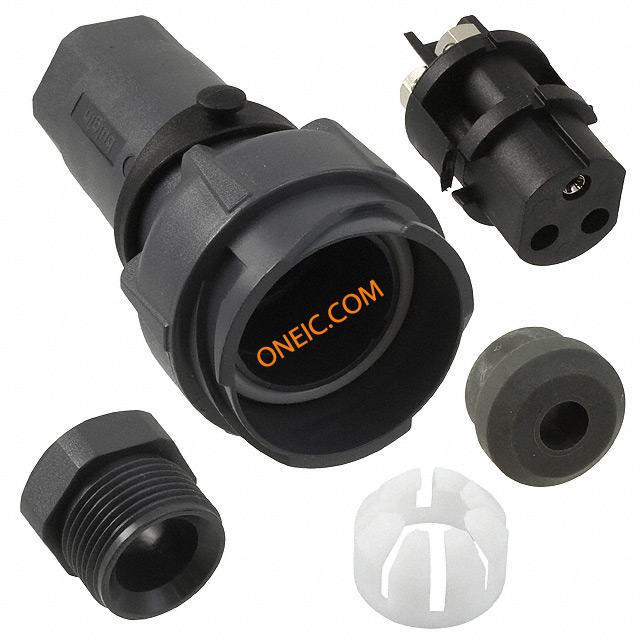

PXP7011/03S/ST/0507
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 708-1721 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 25A |
| Connector - Voltage Input | Female | ||
Mechanical
| Packaging | Bulk | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Screw |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Nickel | Fastening Type | Bayonet Lock |
| Mounting Style | In-Line | Contact Material | Brass |
| Housing Material | Polycarbonate (PC), Polybutylene Terephthalate (PBT) | Termination Style | Screw |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 3 |
| Number of Positions | 3 | Shell Material, Finish | Polycarbonate/Polybutylene Terephthalate (PBT) |
Product Info
| Series | 7000 | Product Type | Connectors |
Environmental
| Ingress Protection | IP66/68/69K - Dust Tight, Water Resistant, Waterproof | Operating Temperature | -40°C ~ 120°C |
