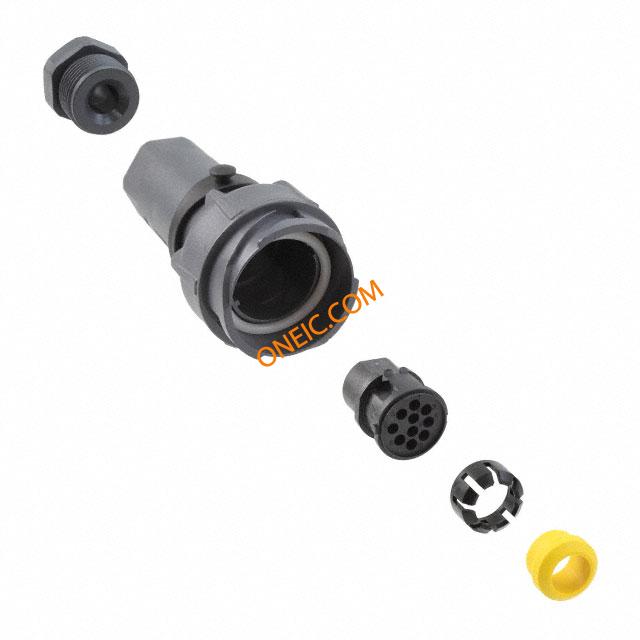

PXP7011/10S/CR/1113
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 708-1744 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 277 V, 600 V | Current Rating (Max) | 6 A, 10 A |
| Connector - Voltage Input | Female | ||
Mechanical
| Packaging | Bulk | Wire Gauge | 20-18 |
| Orientation | Keyed | Shell Style | Receptacle |
| Contact Type | Crimp | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle for Female Contacts | Fastening Type | Bayonet Lock |
| Mounting Style | In-Line | Housing Material | Polycarbonate (PC), Polybutylene Terephthalate (PBT) |
| Termination Style | Crimp | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Material, Finish | Polycarbonate/Polybutylene Terephthalate (PBT) |
Product Info
| Note | Contacts Not Provided | Series | 7000 |
| Product Type | Receptacles | ||
Environmental
| Ingress Protection | IP66/68/69K - Dust Tight, Water Resistant, Waterproof | ||
