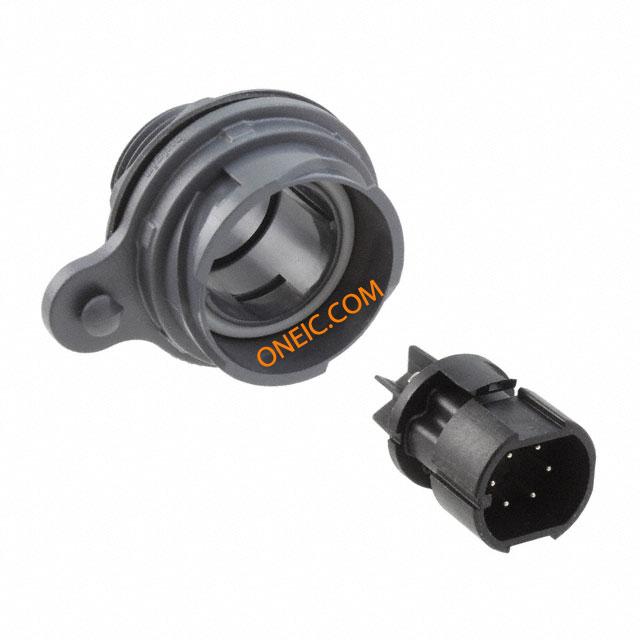

PXP7012/06P/ST
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 708-1656 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 10A |
| Connector - Voltage Input | Female | ||
Mechanical
| Weight | 0.044 | Packaging | Bulk |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Screw | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Connector Type | Receptacle, Male Pins | Contact Finish | Nickel |
| Fastening Type | Bayonet Lock | Mounting Style | Panel |
| Insertion Angle | :- | Material - Body | :PBT (Polybutylene Terephthalate), PC (Polycarbonate) |
| Contact Material | Brass | Housing Material | Polycarbonate (PC), Polybutylene Terephthalate (PBT) |
| Termination Style | Screw | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 6 | Contact Termination | :Screw |
| Number of Positions | 6 | Shell Size - Insert | :(Not Available) |
| Shell Material, Finish | Polycarbonate/Polybutylene Terephthalate (PBT) | 1st Connector Mounting Type | :Panel |
Product Info
| Gender | :Receptacle | Series | 7000 |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP66/68/69K - Dust Tight, Water Resistant, Waterproof | Operating Temperature | -40°C ~ 120°C |
