1.14100.5030000
| Manufacturer | |
| Description | PUSHBUTTON - ILLUMINATED & INDUSTRIAL CONTROLS Switch Key N.O. SPST 0.1A 42VAC 42VDC 1VA 3.3N Gull Wing SMD T/R SWITCH PUSH SPST-NO 0.1A 42V Pushbutton Switches RACON 8 Keyswitch SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 38 Days | Other Names | CKN9363DKR |
| Subcategory | Switch Key | Part # Aliases | 1.14100.503/0000 |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Circuit | SPST-NO | Delay Time | 5 |
| Power - Rated | 1 | Voltage Rating | 42V |
| Switch Function | Off-Mom | Current Rating (Max) | 100mA (AC/DC) |
| Insulation Resistance | 1000 | Voltage - Input (Min) | 42 |
| Switch Function/Rating | N.O. | ||

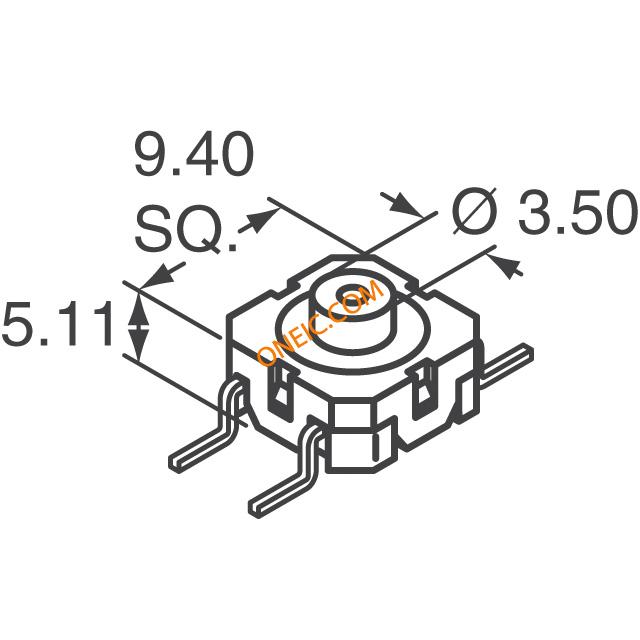

Mechanical
| Depth | 11 | Height | 5.11 |
| Packaging | Tape and Reel | Row Spacing | 9.7 |
| Contact Form | SPST | Pitch - Post | 4.5 |
| Actuator Type | Plunger for Cap | Mounting Type | Surface Mount |
| Terminal Type | Gull Wing | Contact Finish | Gold |
| Mounting Style | Through Hole | Operating Force | 3.3 |
| Contact Material | Gold | Length - Overall | 8.4 |
| Termination Style | Gull Wing | Number of Contacts | 4 |
| Switch Actuation Level | SPST | ||
Product Info
| Type | Short Travel | Electrical Life | 1000000 |
| Industry Aliases | 1.14.100.503/0000 | For Use With/Related Products | 1.14100.503 |
Environmental
| Mechanical Life | 1,000,000 Cycles | Operating Temperature | -40°C ~ 80°C |
