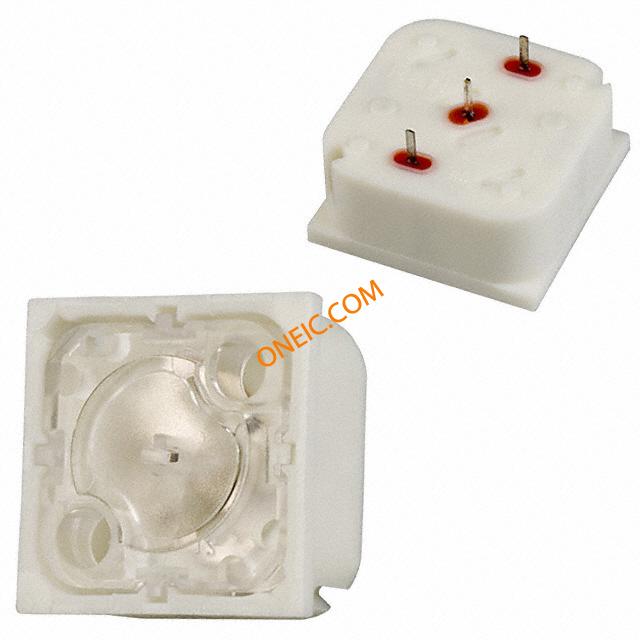

点击放大查看
3.14001.0010000
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Subcategory | Switch Tactile |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPST-NO | Power - Rated | 2 VA |
| Voltage Rating | 42 V | Switch Function | Off-Mom |
| Voltage - Rated AC | 42V | Current Rating (Max) | 0.1@42VAC 42VDC A |
| Voltage - Input (Min) | 42 | Switch Function/Rating | N.O. |
Mechanical
| Depth | 19.05 | Height | 9.7 |
| Packaging | Tube | Actuator Type | Square, Button |
| Mounting Type | Through Hole | Terminal Type | PC Pins |
| Actuator Color | Opaque White | Connector Type | No |
| Contact Finish | Clear | Actuator Length | 0.7 |
| Operating Force | 3 N | Contact Material | Gold |
| Termination Style | PC Pin | Actuator Style/Size | Button |
| Color - Actuator/Cap | Clear | Switch Actuation Level | SPST |
| Material - Housing & Prism | N/A/PBTB | ||
Product Info
| Type | Short Travel | Series | RF19 |
| Circuit Type | SPST-NO | Output Configuration | Through Hole |
| For Use With/Related Products | 3.14001.001 | ||
Environmental
| Mechanical Life | 1,000,000 Cycles | Operating Temperature | -25 to 70 °C |
Documents & Media
Online Document
Sourcing & traceability
- Datasheet
- RF Short-Travel Keyswitches
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
