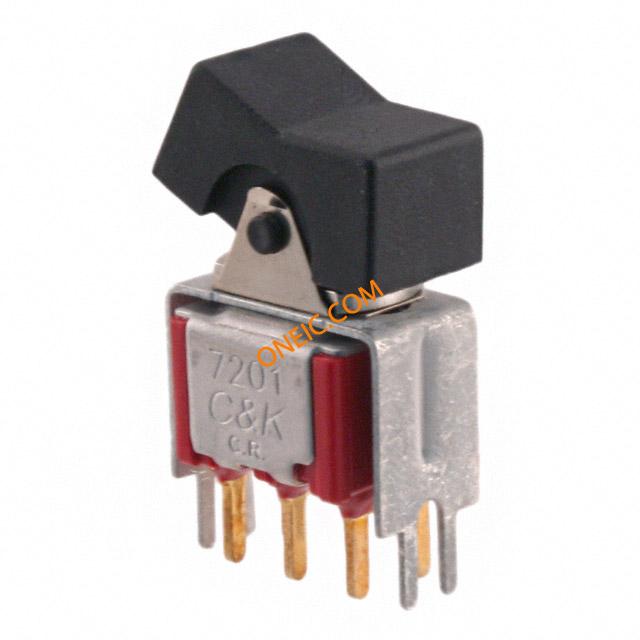

7201J1V3BE2
| Manufacturer | |
| Description | Switch Rocker ON None ON DPDT PC Pins Long Rocker 20VAC 20VDC 0.4VA Rocker SWITCH ROCKER DPDT 0.4VA 20V Rocker Switches ON None ON DPDT 20VAC 20VDC 0.4W |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Lead Time | 49 Days |
| Unit Pack | 1 | Subcategory | Switch Rocker |
| Product Category | Rocker Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | DPDT | Power - Rated | 0.4@20VAC 20VDC VA |
| Voltage Rating | 20 V | Switch Function | On-On |
| Current Rating (Max) | 0.4VA (AC/DC) | Voltage - Input (Min) | 20 |
| Switch Function/Rating | ON None ON | Contact Rating @ Voltage | 0.4 VA |
Mechanical
| Color | Black | Depth | 11.43 |
| Height | 23.38(Norm) | Packaging | Bulk |
| Contact Form | DPDT | Actuator Type | Rocker |
| Mounting Type | Bracket Mount/Through Hole | Terminal Type | PC Pins |
| Contact Finish | Gold/Nickel | Mounting Style | Panel |
| Contact Material | Copper Alloy | Length - Overall | 16.87 |
| Actuator Material | Nylon | Termination Style | PC Pin |
| Actuator Style/Size | Long Rocker | Color - Actuator/Cap | Black |
| Switch Actuation Level | DPDT | Material - Housing & Prism | N/A/Stainless Steel |
Product Info
| Series | 7000 | Features | Epoxy Sealed Terminals |
| Electrical Life | 100,000 Cycles | Actuator Marking | No Marking |
| For Use With/Related Products | 7201J1V3ME2 | ||
Environmental
| Seal Rating | Epoxy | Operating Temperature | -30 to 85 °C |
