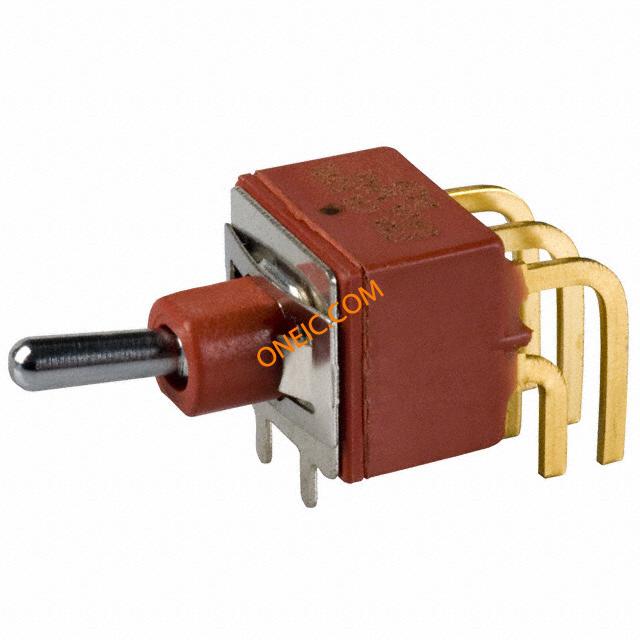

E201MD1ABE
| Manufacturer | |
| Description | Switch Toggle ON None ON DPDT Round Toggle PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket Toggle SWITCH TOGGLE DPDT 0.4VA 20V Toggle Switches DPDT ON-NONE-ON SWITCH, DPDT, R/A, PCB, ON-ON |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Lead Time | 49 Days |
| Unit Pack | 1 | Subcategory | Switch Toggle |
| Product Category | Toggle Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85365007 |
| Material Flammability Rating | :UL 94V-0 | ||
Electrical
| Circuit | DPDT | Power - Max | :0.4VA |
| Power - Rated | 0.4@20VAC 20VDC VA | Voltage - Core | :20VAC |
| Voltage Rating | 20 V | Switch Function | On-On |
| Contact Resistance | :10mohm | Dielectric Strength | :1000V |
| Current Rating (Max) | 0.4VA (AC/DC) | Insulation Resistance | :1000Mohm |
| Voltage - Input (Min) | 20 | Switch Function/Rating | ON None ON |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :20V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :20V | ||
Mechanical
| Depth | :12.7mm | Width | :12.7mm |
| Height | 11.43 | Length | :11.43mm |
| Weight | 0.0044 | Material | :Glass Filled Nylon |
| Packaging | Bulk | Tab Width | :0.76mm |
| Termination | :Through Hole | Contact Form | DPDT |
| Actuator Type | Standard Round | Mounting Type | PC Mount with Bracket |
| Terminal Type | PC Pins | Bushing Thread | Unthreaded |
| Contact Finish | Gold/Nickel | Mounting Style | Through Hole |
| Shaft Diameter | :2.67mm | Actuator Length | 7.62mm |
| Contact Material | Copper Alloy | Length - Overall | :6.35mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | PC Pin |
| Actuator Style/Size | Round Toggle | Diameter - Barrel ID | :6.48mm |
| Switch Actuation Level | DPDT | Contact Layout, Typical | :DPDT |
| 1st Connector Mounting Type | :Through Hole | ||
Product Info
| Type | Sealed Miniature | Series | E |
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 40,000 Cycles | For Use With/Related Products | E201MD1ALEE201MD1AKE |
Environmental
| Seal Rating | Sealed | Ingress Protection | IP57 - Dust Protected, Waterproof |
| Operating Temperature | -30 to 85 °C | ||
Documents & Media
PDF Document
Archive
PDF Document
Online Document
Online Document
Online Document
PDF Document
