点击放大查看
13-000370
| Manufacturer | |

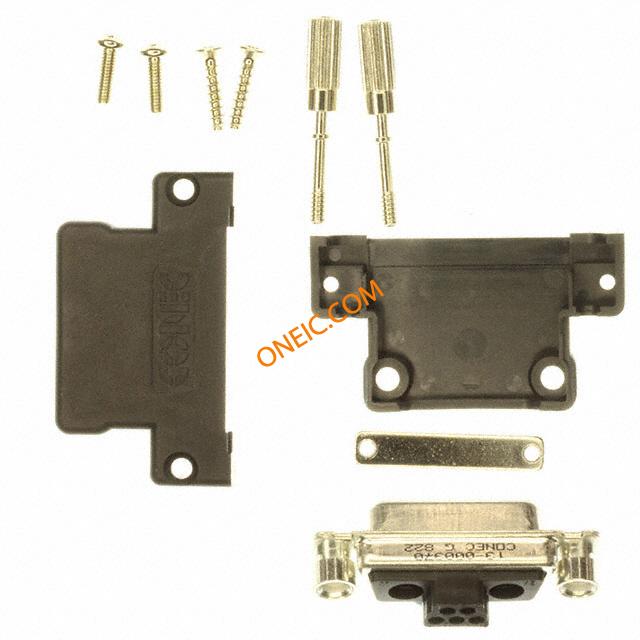

| Description | CONN FEMALE 7W2 SGL CRIMP W/HOOD Micro TCA Connectors MTCA 7W2 KIT LNG SKW HOOD & 7W2 CRIMP CON |
| Category |
商业参数
| 其他名称 | 626-1319 | 产品类别 | Micro TCA Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | No | ||
机械参数
| 颜色 | Black | 包装方式 | Bulk |
| 触头类型 | Power and Signal | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Board Side (4-40) |
| 安装样式 | Cable | 排数 | 2 |
| 连接器样式 | D-Sub, Combo | 触头材料 | Copper Alloy |
| 触点数 | 2 | 介电材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 位数 | 7 (5 + 2 Power) | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 2 (DA, A) - 7W2 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | microTCA |
| 产品特性 | Mounting Hardware, Strain Relief | ||
环境参数
| 插拔次数 | 250 | ||
