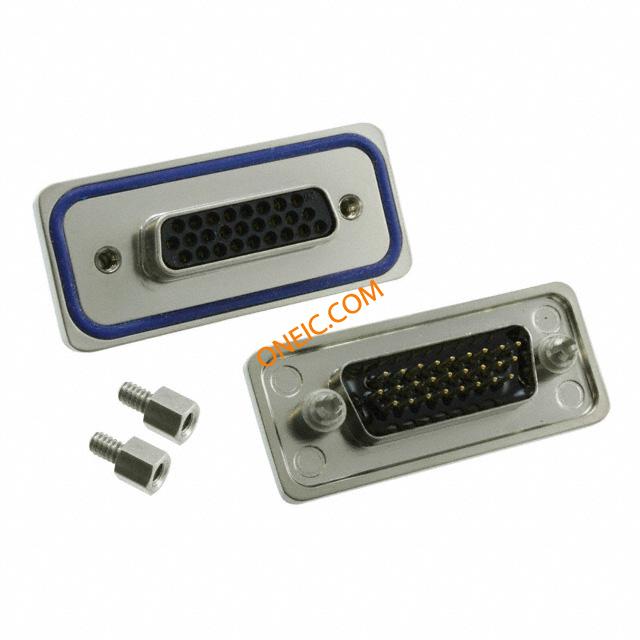

15-000543
| Manufacturer | |
| Description | D-Sub High Density Connectors D-Sub Hd26 Female Pc Str Conn IP67 D-Sub F 26 POS Solder ST Thru-Hole 26 Terminal 1 Port CONN DSUB HD 26POS RECEPT SEALED |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 30 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 60V | Current Rating (Max) | 3A |
Mechanical
| Color | Black | Depth | 18.26 |
| Height | 21.1 | Packaging | Bulk |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Straight | Shell Plating | Zinc Die Cast |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Mating Side; Female Screwlock (4-40) | Mounting Style | Through Hole |
| Number of Rows | 3 | Connector Style | D-Sub, High Density |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Length - Overall | 47.7 |
| Termination Style | Solder | 1st Contact Gender | F |
| Number of Contacts | 26 | Number of Positions | 26 |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated | Contact Finish Thickness | 8µin (0.20µm) |
| Shell Size, Connector Layout | 2 (DA, A) High Density | ||
Product Info
| Type | IP67 D-Sub | Gender | Female |
| Features | Board Lock | Number of Ports | 1 |
Environmental
| Seal Rating | IP 67 | Mechanical Life | New Technology: Cutting edge technology for the newest designs. |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -25°C ~ 105°C |
