点击放大查看

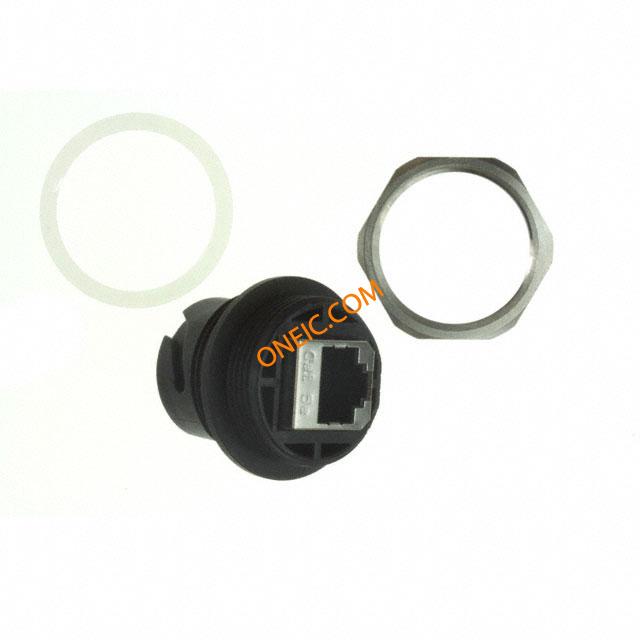

17-10009
| Manufacturer | |
| Description | RJ45 INSTALLATION HOUSING SET COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors RJ45 Cat 5e Female |
| Category |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 100 V | 最大额定电流 | 1.2 A |
机械参数
| 颜色 | Black | 屏蔽 | Shielded |
| 安装类型 | Panel Mount, Bulkhead | 接触镀层 | Gold |
| 安装样式 | Panel | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled | 安装特性 | Front Side Nut, Rear Side Nut |
| 外壳材料及表面处理 | Polyester | 接触镀层厚度 | 50µin (1.27µm) |
产品信息
| 类型 | Coupler | 连接器性别 | Female |
| 产品特性 | Circular Bayonet Coupling | USOC 编码 | RJ45 |
| 端口数 | 1 | 性能类别 | Cat 5e |
| 转换端（适配器端） | Jack, 8p8c (RJ45) | 转换自（适配器端） | Jack, 8p8c (RJ45) |
环境参数
| 额定等级 | Cat5e | 密封等级 | IP 67 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
