点击放大查看
17-10019
| Manufacturer | |
| Description | Conn RJ-45 F 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors RJ45 RECPT ASSBLY CAT5E INLINE UNSHLD Socket; RJ45; RJ45 socket, both sides; PIN:8; Cat:5e; IP67 |
| Category |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 以太网 | Cat 5e | 额定电压 | 100 V |
| 接触电阻 | 20 | 最大额定电流 | 1.2 A |
| 最小输入电压 | 100V | ||
机械参数
| 颜色 | Black | 深度 | 34 |
| 高度 | 32.71 | 重量 | 0.03 kg |
| 屏蔽 | Unshielded | 基体材料 | plastic |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 连接器类型 | RJ45 | 接触镀层 | Gold Over Nickel |
| 安装样式 | Panel | 锁定特性 | bayonet |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 36.18 | 安装特性 | Front Side Nut, Rear Side Nut |
| 包装数量 | 10 | 连接器 - 电缆 | socket |
| 触点数 | 8 | 位数 | 8 |
| 外壳材料及表面处理 | Polyester | 接触镀层厚度 | 50µin (1.27µm) |
| 第一连接器安装特征 | 8p8c | ||
产品信息
| SPG | 10 | 类型 | RJ-45 |
| 连接器性别 | F | 产品特性 | Circular Bayonet Coupling |
| USOC 编码 | RJ45 | 类别编号 | Cat 5e |
| 端口数 | 1 | 单元数量 | 1 |
| 性能类别 | Cat 5e | 转换端（适配器端） | Jack, 8p8c (RJ45) |
| 转换自（适配器端） | Jack, 8p8c (RJ45) | 加载位置数 | 8 |
环境参数
| 额定等级 | Cat5e | 密封等级 | IP 67 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
Documents & Media
相关型号
17-100514
CONEC
RJ45 PATCH CORD PLASTIC DESIGN-BAYONET PLUG CONNECTOR CABLE RJ45 2M IND PLUG-PLUG Ethernet Cables / Networking Cables RJ45 Cat 5e Male
17-10025
CONEC
RJ45 PATCH CORD PLASTIC DESIGN-BAYONET PLUG CONNECTOR CABLE RJ45 2M IND PLUG-PLUG Ethernet Cables / Networking Cables RJ45 Cat 5e Male

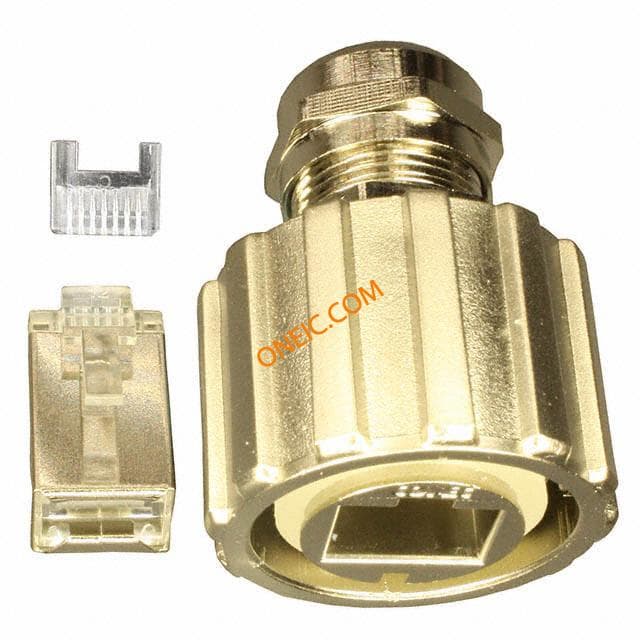

17-10013
