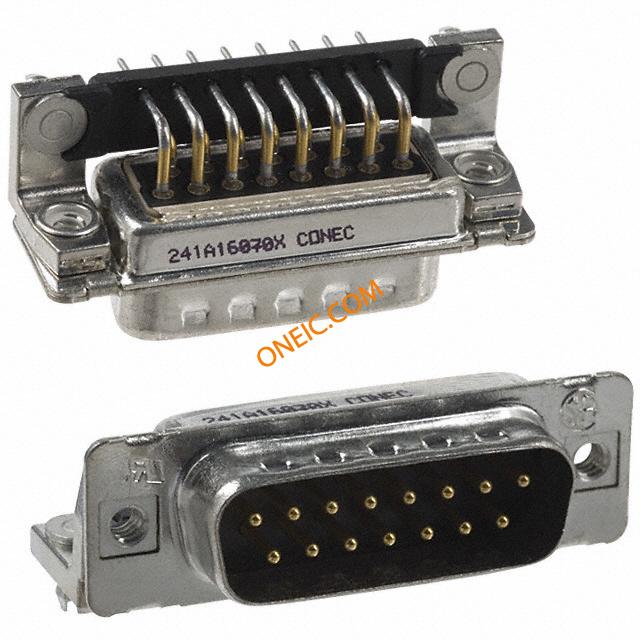

241A16070X
| Manufacturer | |
| Description | D-Sub Standard Connectors 15 POS SOLDER CUP ANGLED MALE THREADED Conn Filtered D-Sub PIN 15 POS Solder RA Thru-Hole 15 Terminal 1 Port CONN DSUB FILTR 15PS MALE RA PCB |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 626-1021 | Product Category | D-Sub Standard Connectors |
| Standard Package | 10 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Voltage Rating | 100V | Current Rating (Max) | 7.5A |
| Voltage - Input (Min) | 100VDC | Voltage - Supply (Min) | 100VDC |
Mechanical
| Color | Black | Height | 12.93 mm |
| Packaging | Tray | Termination | Solder |
| Contact Type | Signal | Mounting Type | Right |
| Shell Plating | Tin | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (4-40) |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Shell Material | Brass / Steel | Connector Style | D-Sub |
| Contact Material | Copper Alloy | Housing Material | Polyester |
| Length - Overall | 39.52 mm | Termination Style | Solder |
| 1st Contact Gender | PIN | Number of Contacts | 15 |
| Number of Positions | 15 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 8µin (0.20µm) | Shell Size, Connector Layout | 2 (DA, A) |
Product Info
| Type | Filtered D-Sub | Gender | Male |
| DELETED | Compliant | Features | Board Lock, Filter, Grounding Indents |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | -25°C ~ 105°C | ||
