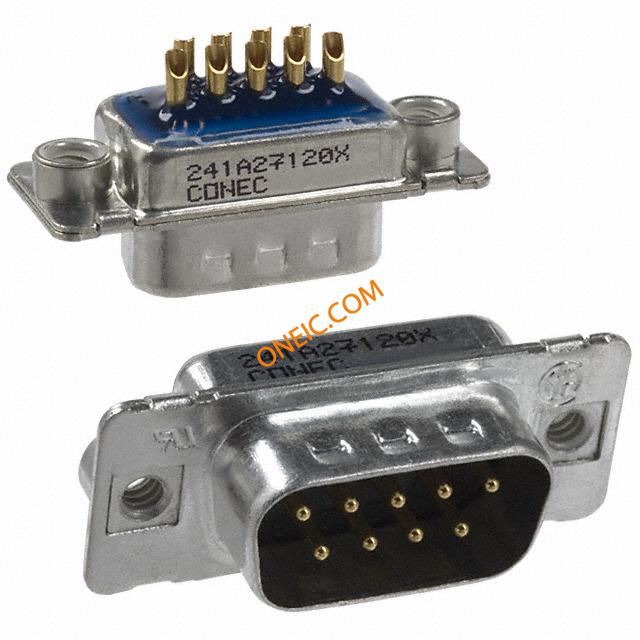

241A27120X
| Manufacturer | |
| Description | D-Sub Standard Connectors 9 POS SOLDER CUP AWG 20 MALE THREADED Conn Filtered D-Sub SKT 9 POS Solder Cup ST Panel Mount 9 Terminal 1 Port CONN DSUB FILTER 9POS MALE |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 626-1010 | Product Category | D-Sub Standard Connectors |
| Standard Package | 10 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 100V | Current Rating (Max) | 7.5 A |
| Voltage - Input (Min) | 100VDC | ||
Mechanical
| Color | Black | Depth | 16.62 |
| Height | 12.93 | Packaging | Tray |
| Termination | Solder Cup | Contact Form | Signal |
| Contact Type | Signal | Mounting Type | Straight |
| Shell Plating | Gold over Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Board Side (4-40) |
| Mounting Style | Wire | Number of Rows | 2 |
| Connector Style | D-Sub | Contact Material | Copper Alloy |
| Housing Material | Polyester | Length - Overall | 31.19 |
| Termination Style | Solder | 1st Contact Gender | SKT |
| Number of Contacts | 9 | Number of Positions | 9 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 8µin (0.20µm) |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Type | Filtered D-Sub | Gender | Male |
| Series | 241A | Features | Filter, Grounding Indents |
| Main Purpose | Filter, Grounding Indents | Number of Ports | 1 |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Operating Temperature | -25°C ~ 105°C | ||
