点击放大查看

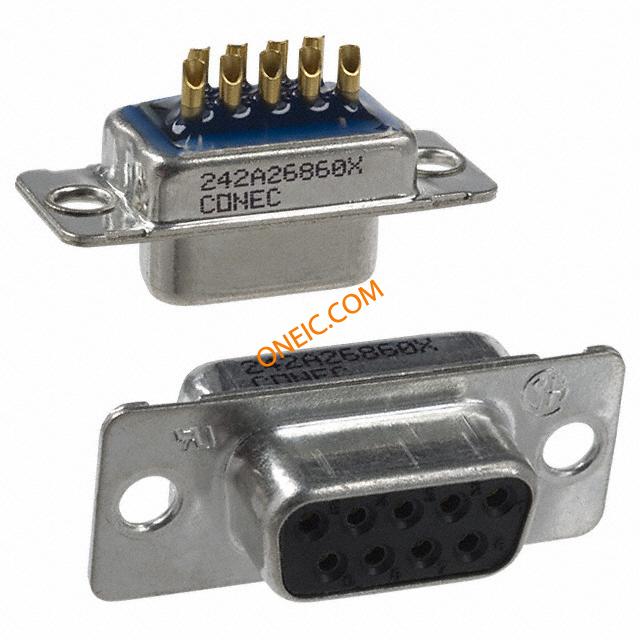

242A26860X
| Manufacturer | |
| Description | D-Sub Standard Connectors 9 POS SOLDER CUP AWG 20 FM THRUHOLE Conn Filtered D-Sub SKT 9 POS Solder Cup ST Panel Mount 9 Terminal 1 Port CONN DSUB FILTER 9POS FEMALE |
| Category |
商业参数
| 其他名称 | 626-1007 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 100 V | 最大额定电流 | 5 A |
| 最小输入电压 | 100VDC | ||
机械参数
| 颜色 | Black | 深度 | 16.7 |
| 高度 | 12.93 | 包装方式 | Tray |
| 端接方式 | Solder Cup | 触头类型 | Signal |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 总长度 | 31.19 |
| 端接样式 | Solder | 第一触头极性 | SKT |
| 触点数 | 9 | 位数 | 9 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | 8µin (0.20µm) |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 类型 | Filtered D-Sub | 连接器性别 | Female |
| 系列 | 242A | 产品特性 | Filter |
| 端口数 | 1 | ||
环境参数
| 工作温度 | - 25 C to + 105 C | ||
Documents & Media
相关型号
165X10909XE
CONEC
D-Sub Backshells MTLZD PLASTIC HOOD 9 POS CONN BACKSHELL DB9 STR METALIZED
165X10389XE
CONEC
D-Sub Backshells PLASTIC HOOD 9 POS BLK STRIAGHT ENTRY Connector Accessories D-SUB One Piece Plastic Hood 9 POS Polyamide Straight Entry CONN BACKSHELL DB9 STR BLACK
165X13219XE
CONEC
D-Sub Backshells PLASTIC HOOD 9 POS DUAL ENTRY NO HDWR Connector Accessories D-SUB Plastic Hood 9 POSPolypropylene Black With Two Entries Straight And Side Hinged Version CONN BACKSHELL DB9 DL EXIT BLK
165X11239XE
CONEC
D-Sub Backshells PLASTIC HOOD 9 POS BLK DUAL ENTRY Connector Accessories D-SUB Plastic Hood 9 POS Acrylonitrile Butadiene Styrene Black With Top And Side Cable Exit With Jack Screw CONN BACKSHELL DB9 DL EXIT BLK
165X02689XE
CONEC
D-Sub Backshells METAL HOOD 9 POS ANGLED Connector Accessories D-SUB Metal Hood 9 POS Zinc Die Cast Nickel With Side Cable Exit And Jack Screw CONN BACKSHELL DB9 45DEG METAL
165X17309X
CONEC
D-Sub Backshells METAL HOOD 9-POS STRAIGHT W/SLEEVE Connector Accessories Metal Hood 9 POS Zinc Die Cast Nickel With Straight Cable Exit BACKSHELL 9 POS DIE-CAST 4-40
165X11319XE
CONEC
D-Sub Backshells MTLZD PLASTIC HOOD 9P W/JACK SCREW Connector Accessories D-SUB Plastic Hood 9 POS Acrylonitrile Butadiene Styrene With Top And Side Cable Exit With Jack Screw CONN BACKSHELL DB9 DL METALIZED
165X13179XE
CONEC
D-Sub Backshells PLASTIC HOOD 9 POS Connector Accessories D-SUB Plastic Hood 9 POS Polyamide With Straight Cable Exit CONN BACKSHELL DB9 STR PLASTIC
241A26960X
CONEC
D-Sub Standard Connectors 9 POS SOLDER CUP AWG 20 MALE THRUHOLE Conn Filtered D-Sub PIN 9 POS Solder Cup ST Panel Mount 9 Terminal 1 Port CONN DSUB FILTER 9POS MALE
165X10439XE
CONEC
D-Sub Backshells PLASTIC HOOD 9 POS BLK SIDE ENTRY Connector Accessories D-SUB One Piece Plastic Hood 9 POS Polyamide Side Entry CONN BACKSHELL DB9 90DEG BLACK
165X10139XE
CONEC
D-Sub Backshells PLASTIC HOOD 9 POS BLACK Connector Accessories D-SUB Plastic Hood 9 POS Polyamide Black Straight Cable Exit, Jack Screw Single Packed Version CONN BACKSHELL DB9 STR BLACK Connector Accessories D-SUB Plastic Hood 9 POS Polyamide Black Straight Cable Exit, Jack Screw Single Packed V
165X11279XE
CONEC
D-Sub Backshells PLASTIC HOOD 9 POS DUAL ENTRY SLIDELOCK Connector Accessories D-SUB Plastic Hood 9 POS Acrylonitrile Butadiene Styrene Black With Top And Side Cable Exit With Slide Lock CONN BACKSHELL DB9 DL W/SIDELOCK
165X02609XE
CONEC
D-Sub Backshells METAL HOOD 9 POS STRAIGHT Connector Accessories D-SUB Metal Hood 9 POS Zinc Die Cast Nickel With Straight Cable Exit And Jack Screw CONN BACKSHELL DB9 STR METAL
165X00779XE
CONEC
D-Sub Backshells SHIELDED 9 POS BLK CONN BACKSHELL DB9 45DEG BLACK

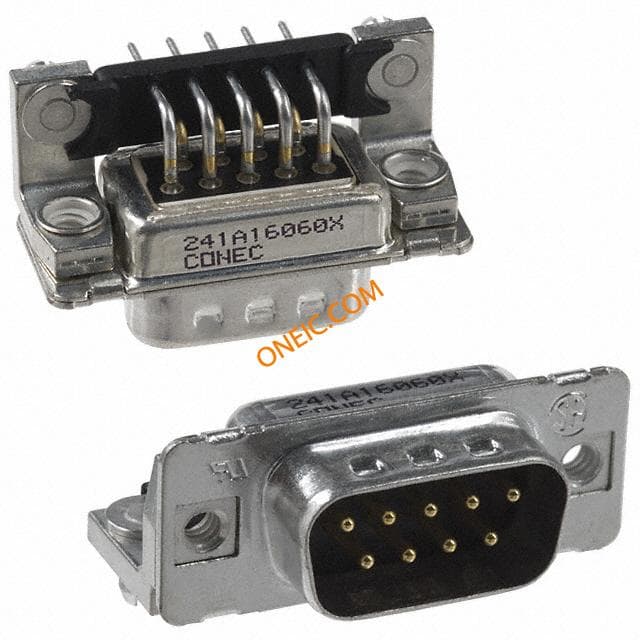

241A16060X
