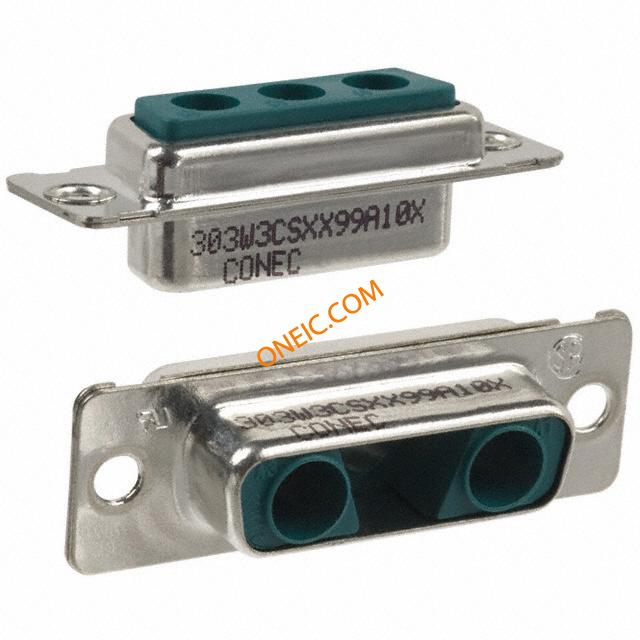

303W3CSXX99A10X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Mixed Contact Connectors 3W3C FEMALE CONN DSUB COMBO 3POS 3W3C SOCKET
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1097	产品类别	D-Sub Mixed Contact Connectors
标准包装数量	10

合规参数

RoHS

RoHS Compliant

机械参数

颜色	Green	包装方式	Tray
外壳尺寸	2	触头类型	Coax or Power
安装类型	Straight	外壳镀层	Tin
连接器类型	Receptacle for Female Contacts	法兰特征	Housing/Shell (Unthreaded)
安装样式	Panel	排数	2
外壳材料（壳体）	Steel	连接器样式	D-Sub, Combo
端接样式	Crimp	介电材料	Polybutylene Terephthalate (PBT), Glass Filled
位数	3 (Coax or Power)	外壳镀层厚度	320µin (8.13µm)
外壳材料及表面处理	Steel, Tin Plated	典型触点布局	3W3CS
外壳尺寸，连接器布局	2 (DA, A) - 3V3, 3W3K, 3W3CS

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	300

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

13K1A196A.pdf

PDF Document

303W3CSXX99A10X Drawing

PDF Document

Comb D-SUB without Contacts

PDF Document

Combination D-SUB Spec
