43-00104
| Manufacturer | |

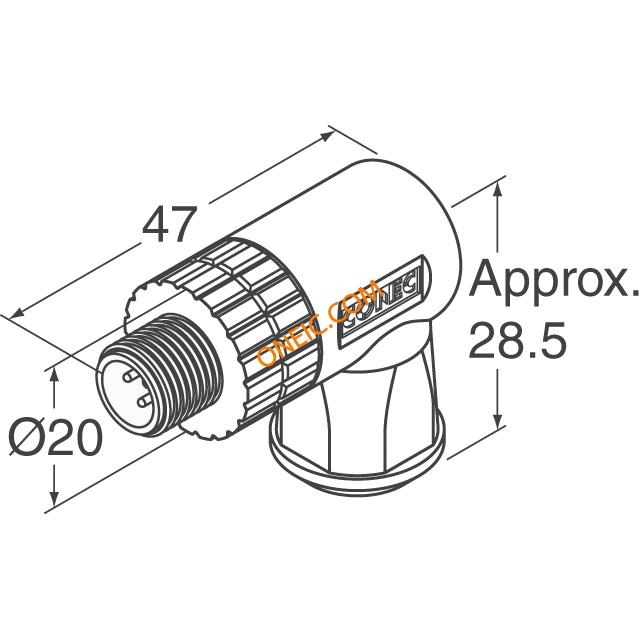

| Description | Circular Metric Connectors 4P M12 PLUG R/A FIELD ATTACH CONN PLUG MALE M12 4POS R/A 8MM |
| Category |
商业参数
| 产品类别 | Circular Metric Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 4A |
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Screw |
| 安装类型 | Free Hanging (In-Line), Right Angle | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Cable | 端接样式 | Screw |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 位数 | 4 | 外壳尺寸-插件 | M12-4 |
| 外壳材料及表面处理 | Polyamide | ||
产品信息
| 系列 | M12 | 产品子类型 | Connectors |
环境参数
| 密封等级 | IP 67 | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -30°C ~ 85°C | ||
